Rear Thorax Airbag With Igniter, Removing And Installing: Removing
-- Fold the rear seat backrest forward.
-- Remove the bolt -1-.
-- Pivot the side cushion -2- slightly forward and remove them upward in direction of -arrow- from the rear seat backrest bearing -3-.
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

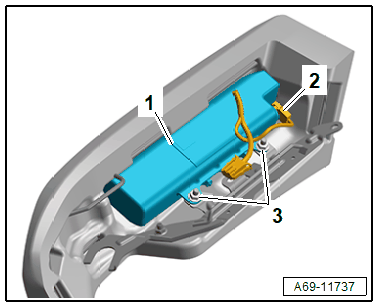

-- Disconnect the connector -2- from the thorax airbag igniter.
-- If equipped, disconnect the connector.
-- Remove the side cushion and lay it on a soft surface.
-- Remove the nuts -3-.
-- Disengage the thorax airbag -1- and remove it from the bag sewn in to the cover (not shown in the illustration).
