Rear Three Point Seat Belt In Center, Removing And Installing: Removing

-- Remove the left rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Remove the backrest cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

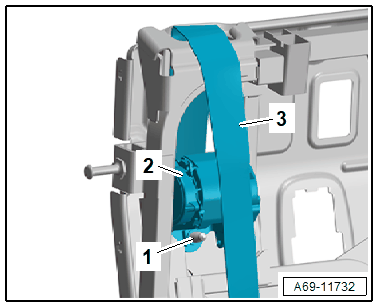

-- Loosen the back of the backrest trim panel, until the bolt -1- is accessible.

GWWA69-11732Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt.

-- Disengage the three-point seat belt -2- and remove it.

-- Guide out the seat belt webbing -3-.
