Rear Seat Belt Latch, Removing And Installing: Removing
-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
Equipment Version
-- Remove the B-pillar lower trim panel. Refer to B-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .
Continuation for All Vehicles
-- Free up the lower C-pillar trim panel in the area of the door seal.
-- Unclip the C-pillar trim panel -1- from the B-pillar in direction of -arrow A- using the trim removal wedge no. 7 from the Scraper Set:VAS 6845 .
-- Unclip the C-pillar trim panel from the side sill in direction of -arrows B- and press to the side.

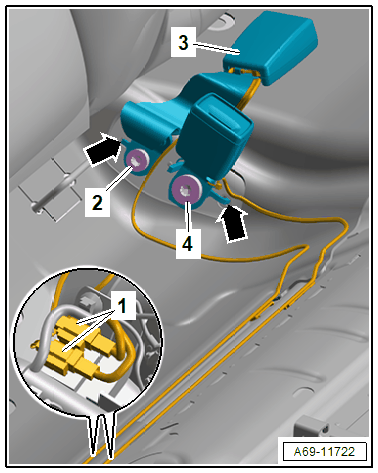

-- Disconnect the connector -1- for the seat belt switch, as shown in this example.
-- Free up the seat belt switch wire.
Outer Seat Belt Latch
-- Remove the bolt -4-.
Center Seat Belt Latch
-- Remove the bolt -2- and remove the seat belt latch -3-.
Continuation for All Vehicles
