Rear Seat Belt Guide In Center Seating Position, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
-- Guide the seat belt into the seat belt guide.

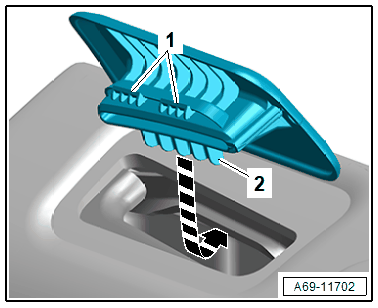

-- First, insert the seat belt guide at the rear with the hook -2- into the mount at the rear seat backrest in direction of -arrow-.
-- Firmly press the seat belt guide backward into the mount and at the same time engage the locking tabs -1- downward into the rear seat backrest.
Conditions
- Make sure the retainers are securely engaged.
