Front Three-Point Seat Belt, Removing And Installing: Removing

-- Move the front seat all the way forward and up.

-- Remove the front belt end fitting. Refer to Front Belt End Fitting, Removing and Installing  .

-- Remove the B-pillar upper trim panel and guide the seat belt out. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .

-- Free up the lower C-pillar trim panel in the door seal area.

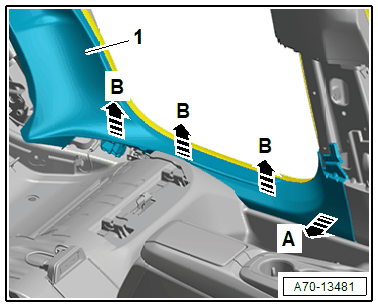

-- Unclip the C-pillar trim panel -1- from the B-pillar in direction of -arrow A- using the trim removal wedge no. 1 Scraper Set:VAS 6845  .

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the C-pillar trim panel from the side sill in direction of -arrows B- and press to the side.

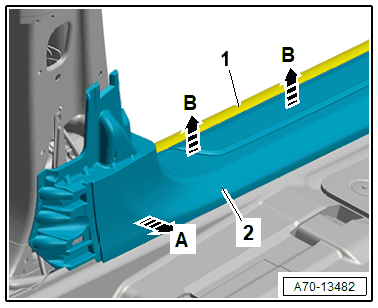

-- Free up the lower A-pillar trim panel -2- in the door seal area -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the B-pillar trim panel from the B-pillar in direction of -arrow A- using the trim removal wedge.

-- Unclip the A-pillar trim panel from the side sill in direction of -B arrows- and press to the side.

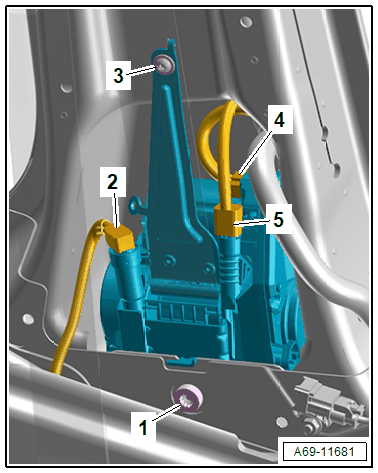

-- Disconnect the connector -2- for the seat belt tensioner igniter.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -5- for the seat belt force limiter.

-- Disconnect the connector -4- for the seat belt tensioner control module.

-- Remove the bolts -1 and 3-.

-- Remove the automatic belt retractor from the mount.

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the belt from the seat belt guide -2-.

-- Remove the bolt -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat belt relay -2- with the seat belt.
