Overview - Head Curtain Airbag

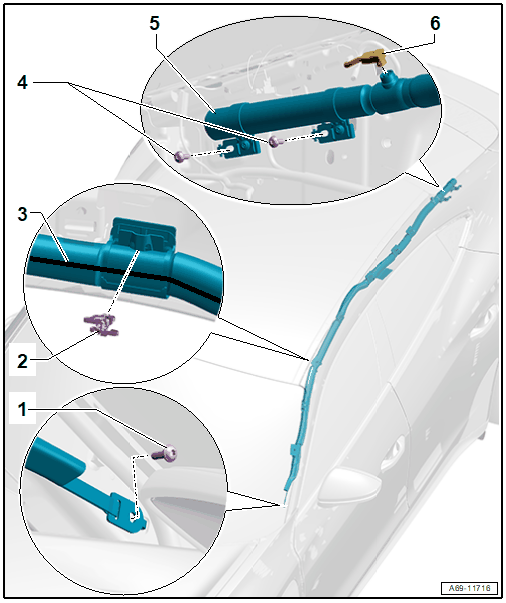

GWWA69-11716Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 5 Nm
    • Replace after removing
  2. Clip
  3. Colored Strip
  4. Bolts
    • 5 Nm
    • Replace after removing
  5. Head Curtain Airbag
  6. Connector
    • For the head curtain airbag igniter
