Crash Sensor for Power and Control Electronics -G871-, REMOVING AND INSTALLING: Removing
-- Open the hood.
-- Remove the luggage compartment liner. Refer to FRONT LUGGAGE COMPARTMENT LINER, REMOVING AND INSTALLING .
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

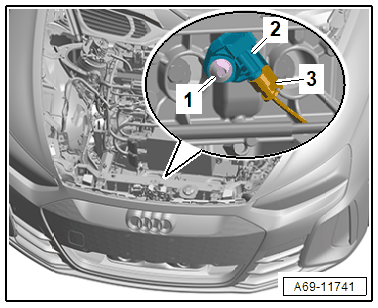

-- Remove the screw -1- and then remove the front airbag crash sensor -2- from the lock carrier.
-- Disconnect the connector -3-.
-- To do this pull out the connector lock -2-, push down in direction of -arrow-, and disconnect the connector -1- on the crash sensor.
