Crash Sensor 2 for Power and Control Electronics -G1113-, REMOVING AND INSTALLING: Removing
-- Lift the luggage compartment floor and fold it forward.
-- Remove the storage compartment.
-- Remove the lock carrier trim panel. Refer to Lock Carrier Trim Panel, Removing and Installing .
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

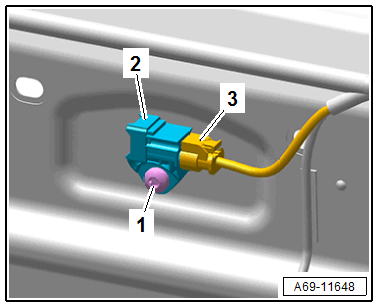

-- Remove the bolt -1- and remove the crash sensor -2- for the side airbag from the body, as shown in the example.
-- Disconnect the connector -3-.
-- To do this pull out the connector lock -2-, push down in direction of -arrow-, and disconnect the connector -1- on the crash sensor.
