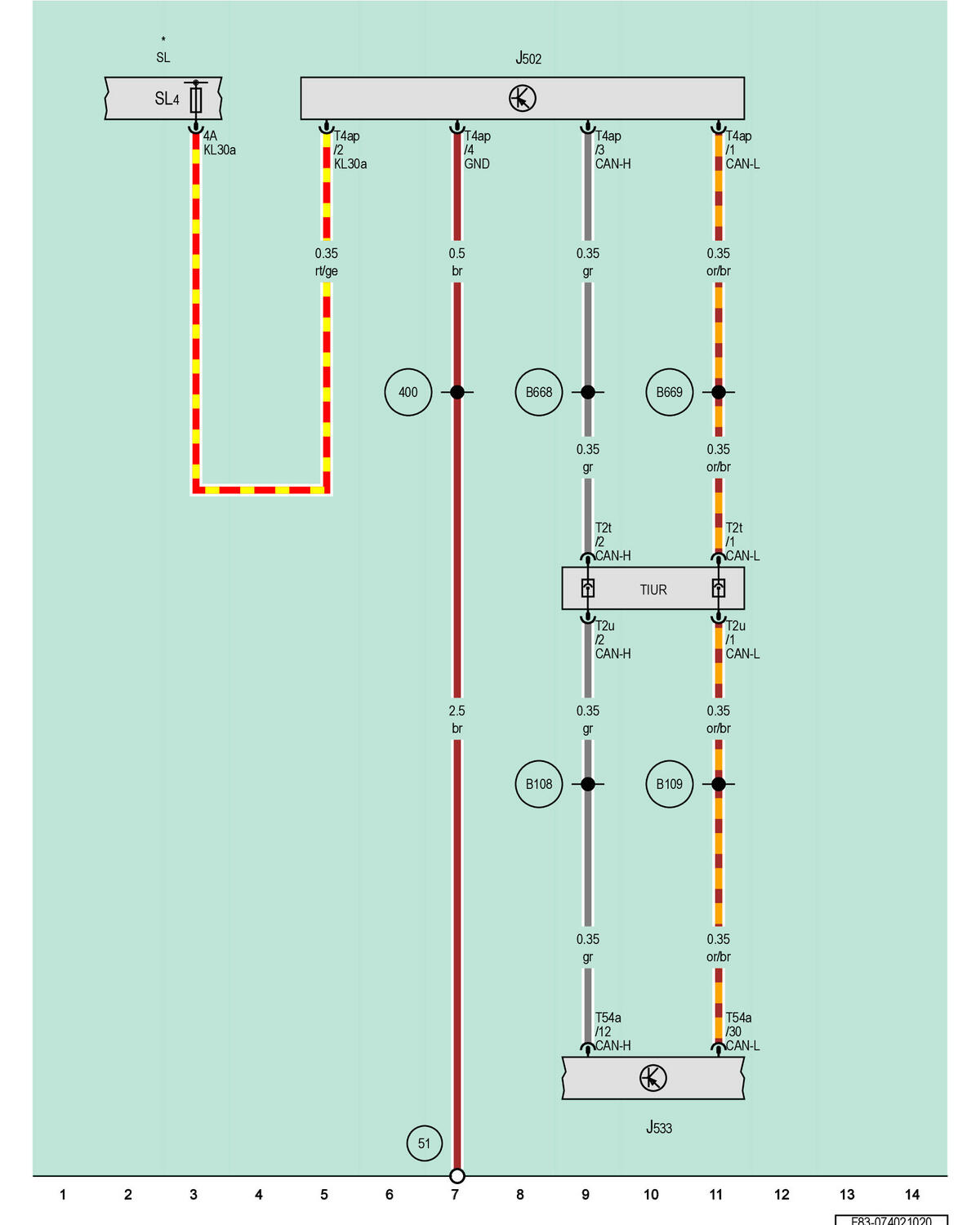

Tire Pressure Monitoring Control Module

Courtesy of AUDI OF AMERICA, LLC

J502

J533

Data Bus on Board Diagnostic Interface

Fuse Panel L

SL4

Fuse 4 on Fuse Panel L

T2t

2-Pin Connector, Black

T2u

2-Pin Connector, Black

T4ap

4-Pin Connector, Gray

T54a

54-Pin Connector, Black

TIUR

Coupling Point in Interior, Bottom Right

Ground Connection in Luggage Compartment, Right

400

Ground Connection 35 (in Main Wiring Harness)

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

B668

CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment
