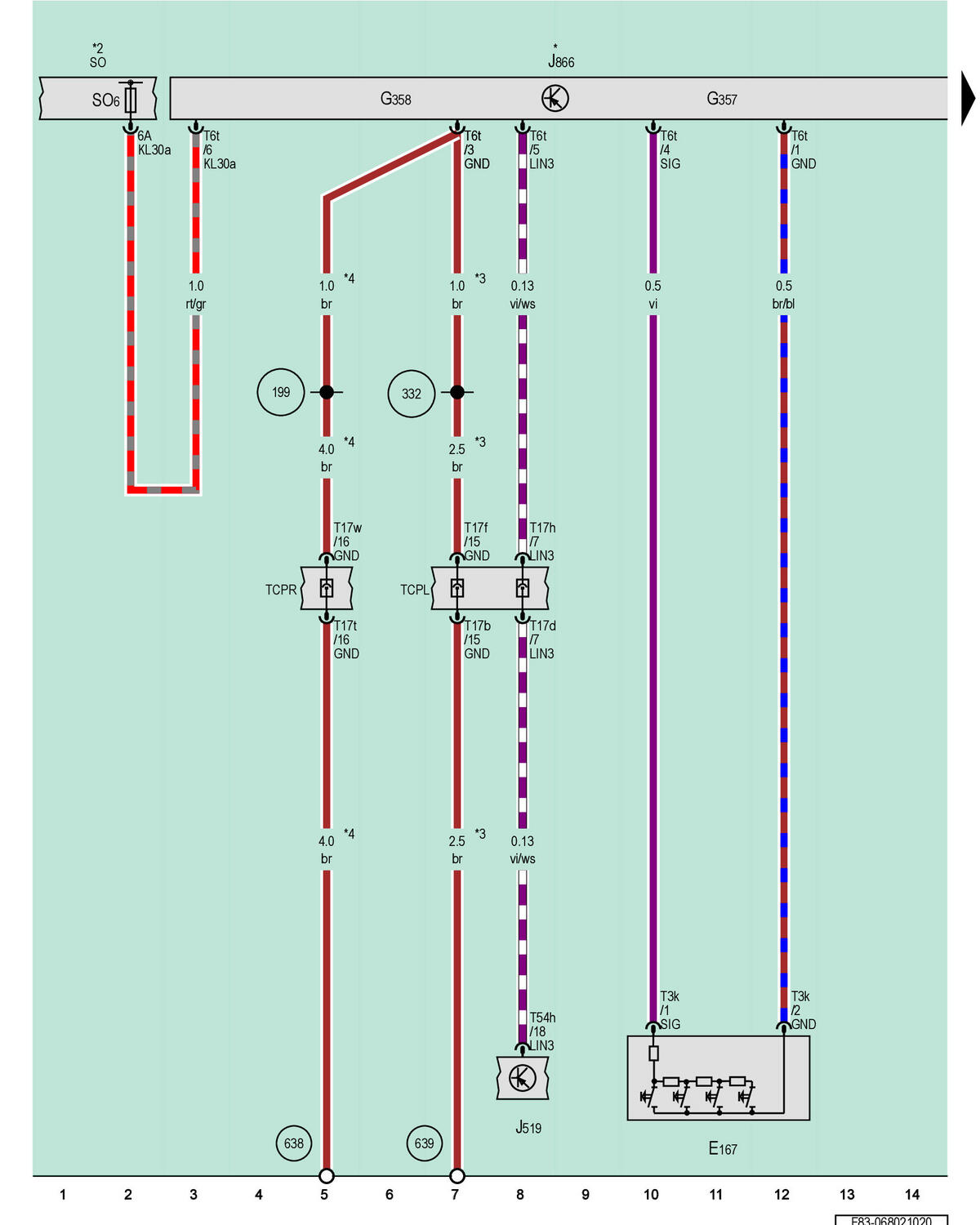

Steering Column Adjustment Switch, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module
E167
Steering Column Adjustment Switch
G357
Steering Column Vertical Adjustment Sensor
G358
Steering Column Axial Adjustment Sensor
J519
Vehicle Electrical System Control Module
J866
Power Adjustable Steering Column Control Module
SO
Fuse Panel O
SO6
Fuse 6 on Fuse Panel O
T3k
3-Pin Connector, Black
T6t
6-Pin Connector, Brown
T17b
17-Pin Connector, Brown
T17d
17-Pin Connector, Blue
T17f
17-Pin Connector, Brown
T17h
17-Pin Connector, Blue
T17t
17-Pin Connector, Blue
T17w
17-Pin Connector, Blue
T54h
54-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
TCPR
Coupling Point on Instrument Panel, Right
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
638
Ground Connection on Right A-Pillar
639
Ground Connection on Left A-Pillar
*
Pre-Wired Component
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
For LHD Vehicles
*4
For RHD Vehicles
