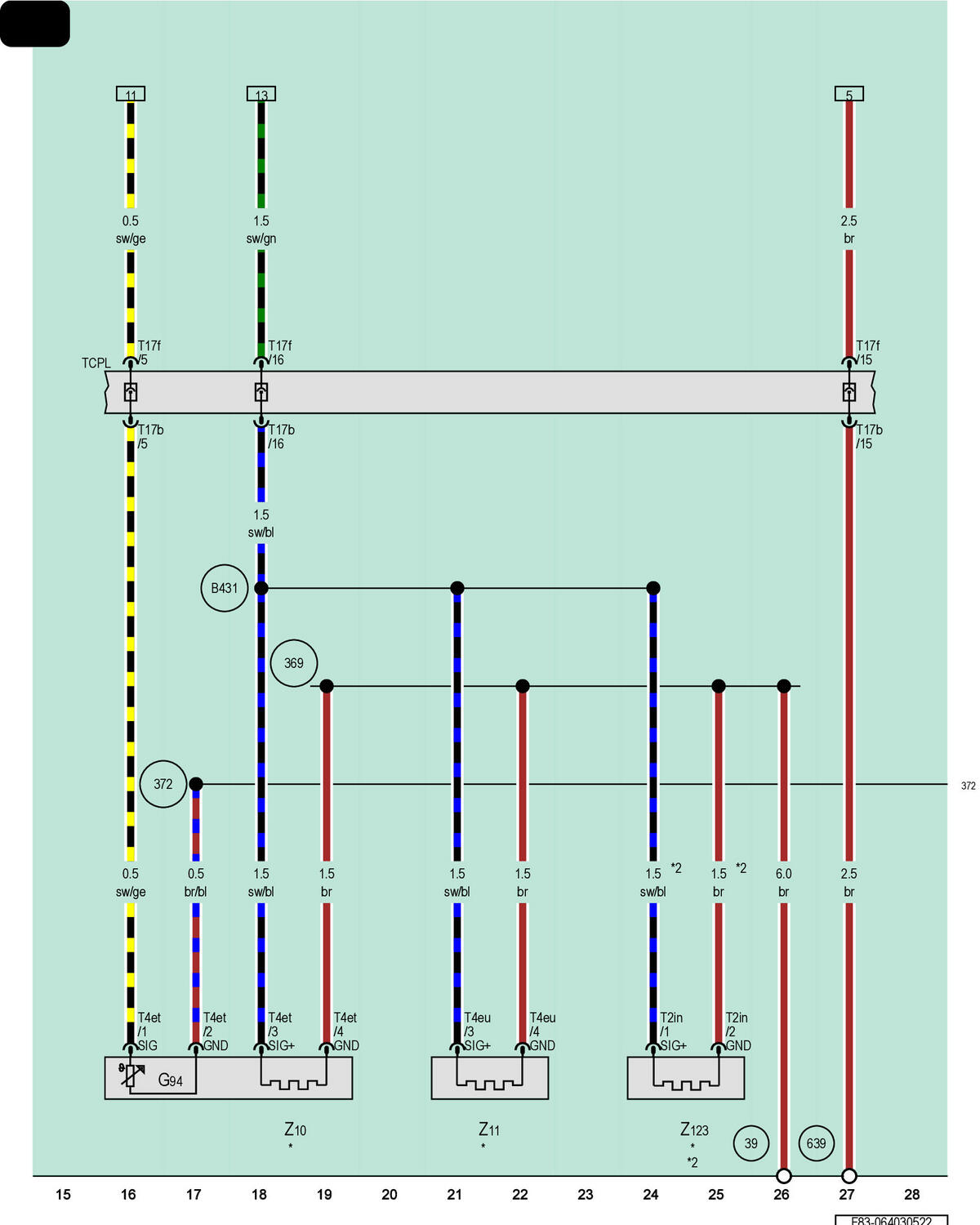

Left Rear Bench Seat Heating Element, Left Rear Backrest Heating Element, Seat Bolster Heating For Left Rear Seat

Courtesy of AUDI OF AMERICA, LLC

G94

Left Rear Heated Seat Temperature Sensor

T2in

2-Pin Connector, Black

T4et

4-Pin Connector, Black

T4eu

4-Pin Connector, Black

T17b

17-Pin Connector, Brown

T17f

17-Pin Connector, Brown

TCPL

Coupling Point on Instrument Panel, Left

Z10

Left Rear Bench Seat Heating Element

Z11

Left Rear Backrest Heating Element

Z123

Seat Bolster Heating for Left Rear Seat

39

Ground Connection Under Left Rear Bench Seat

369

Ground Connection 4 (in Main Wiring Harness)

372

Ground Connection 7 (in Main Wiring Harness)

639

Ground Connection on Left A-Pillar

B431

Seat Heating Connection (in Main Wiring Harness)

*

Pre-Wired Component

*2

Through March 2021
