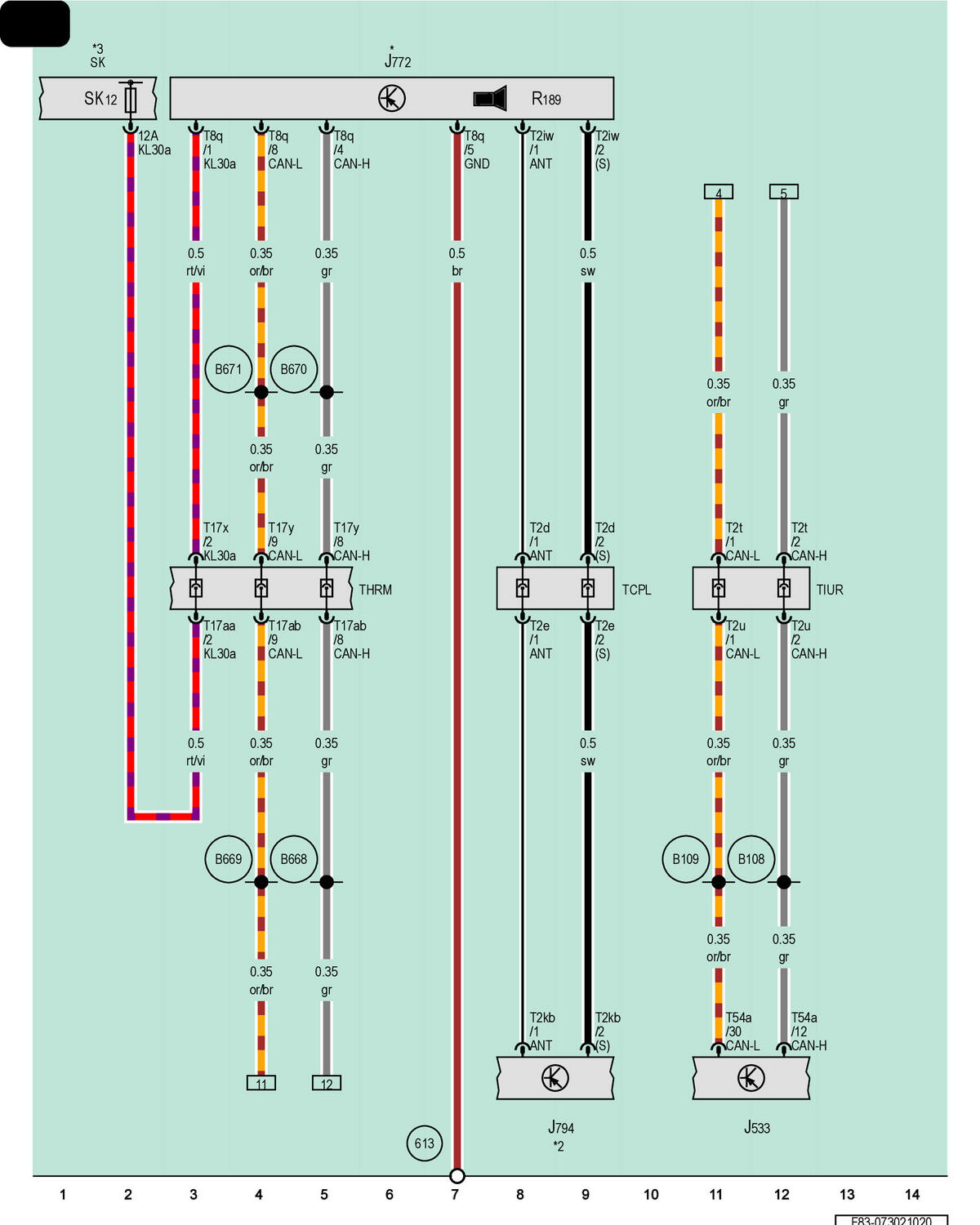

Rearview Camera System Control Module, Information Electronics Control Module 1
J533
Data Bus on Board Diagnostic Interface
J772
Rearview Camera System Control Module
J794
Information Electronics Control Module 1
R189
Rearview Camera
SK
Fuse Panel K
SK12
Fuse 12 on Fuse Panel K
T2d
2-Pin Connector, Pink
T2e
2-Pin Connector, Pink
T2iw
2-Pin Connector, Gray
T2kb
2-Pin Connector, Green
T2t
2-Pin Connector, Black
T2u
2-Pin Connector, Black
T8q
8-Pin Connector, Black
T17aa
17-Pin Connector, Black
T17ab
17-Pin Connector, Red
T17x
17-Pin Connector, Black
T17y
17-Pin Connector, Red
T54a
54-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
THRM
Coupling Point in Luggage Compartment, Center
TIUR
Coupling Point in Interior, Bottom Right
613
Audio Ground Connection in Luggage Compartment, Left
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
B670
CAN Bus Extended High Connection 3 (in Main Wiring Harness)
B671
CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
*
Pre-Wired Component
*2
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment
