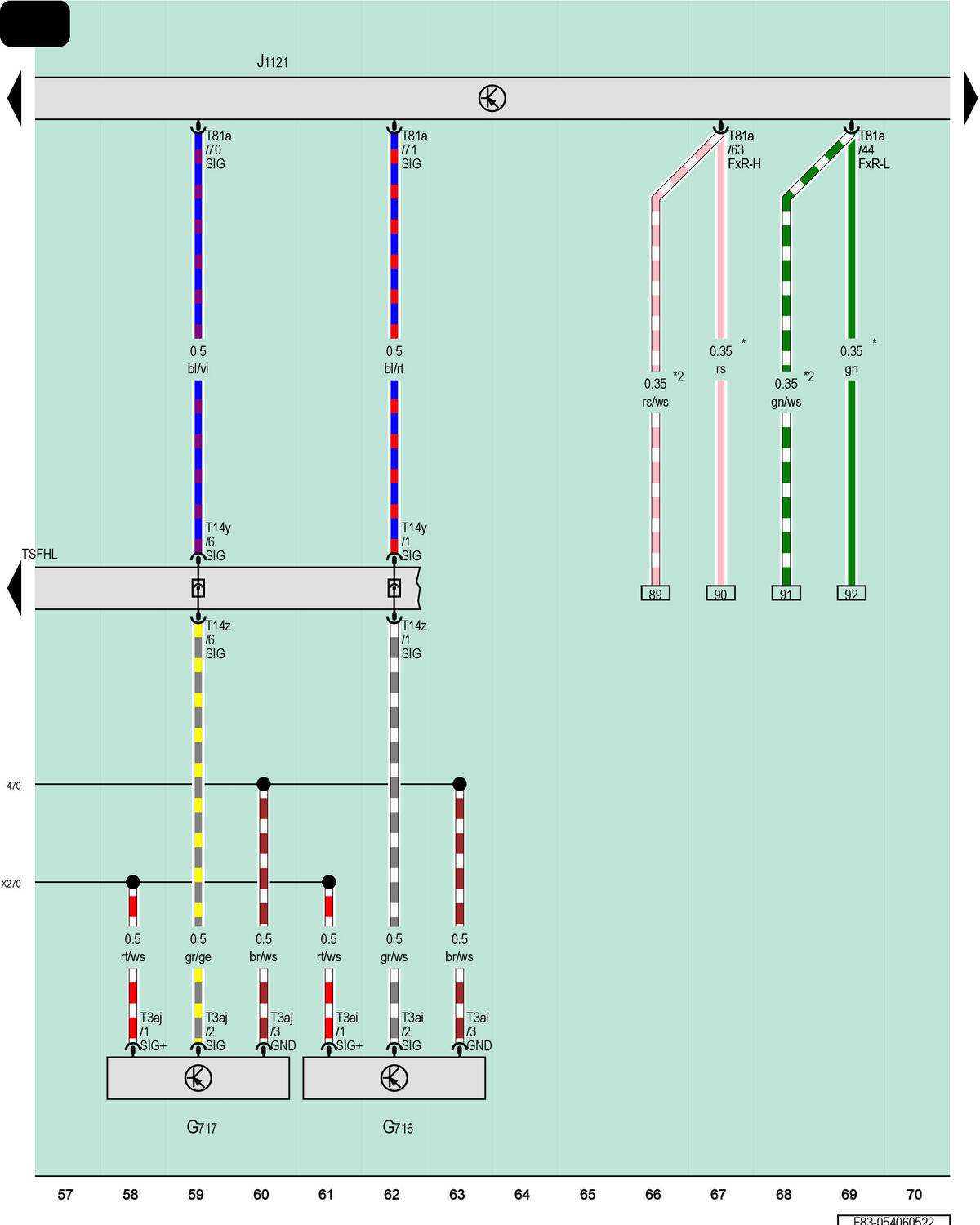

Left Rear Parallel Parking Assistance Sensor, Right Rear Parallel Parking Assistance Sensor, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

G716

Left Rear Parallel Parking Assistance Sensor

G717

Right Rear Parallel Parking Assistance Sensor

J1121

Driver Assistance Systems Control Module

T3ai

3-Pin Connector, Black

T3aj

3-Pin Connector, Black

T14y

14-Pin Connector, Brown

T14z

14-Pin Connector, Brown

T81a

81-Pin Connector, Black

TSFHL

Coupling Point on Left Rear Bumper

470

Ground Connection 1 (in Rear Bumper Wiring Harness)

X270

Connection 30 (in Rear Bumper Wiring Harness)

*

Omitted as a Running Change

*2

Running Change
