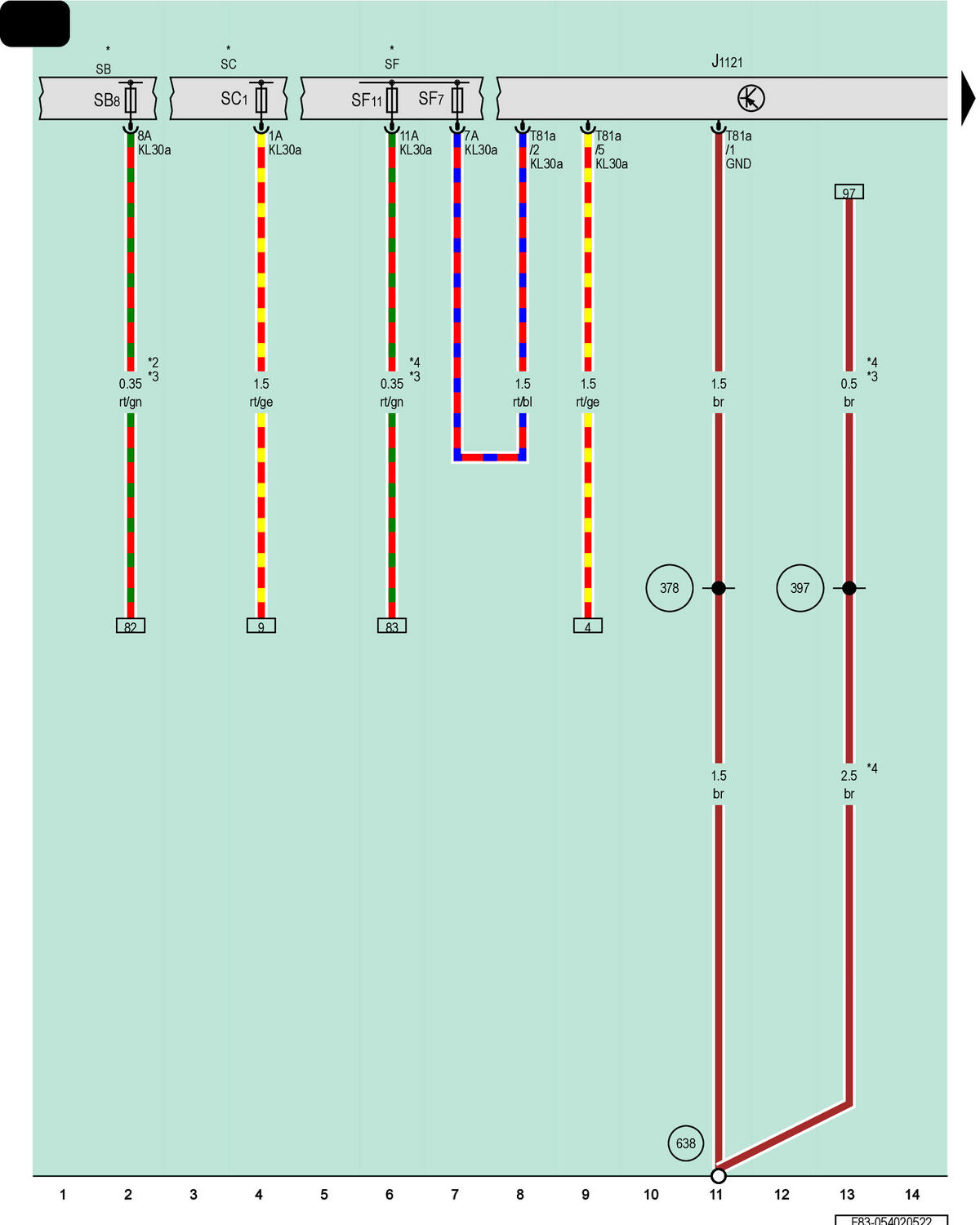

Driver Assistance Systems Control Module
J1121
Driver Assistance Systems Control Module
SB
Fuse Panel B
SC
Fuse Panel C
SC1
Fuse 1 (On Fuse Panel C)
SF
Fuse Panel F
SF7
Fuse 7 (On Fuse Panel F)
SB8
Fuse 8 (On Fuse Panel B)
SF11
Fuse 11 (On Fuse Panel F)
T81a
81-Pin Connector, Black
378
Ground Connection 13 (in Main Wiring Harness)
397
Ground Connection 32 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
For LHD Vehicles
*3
For Vehicles with Radio-Controlled Parking
*4
For RHD Vehicles
