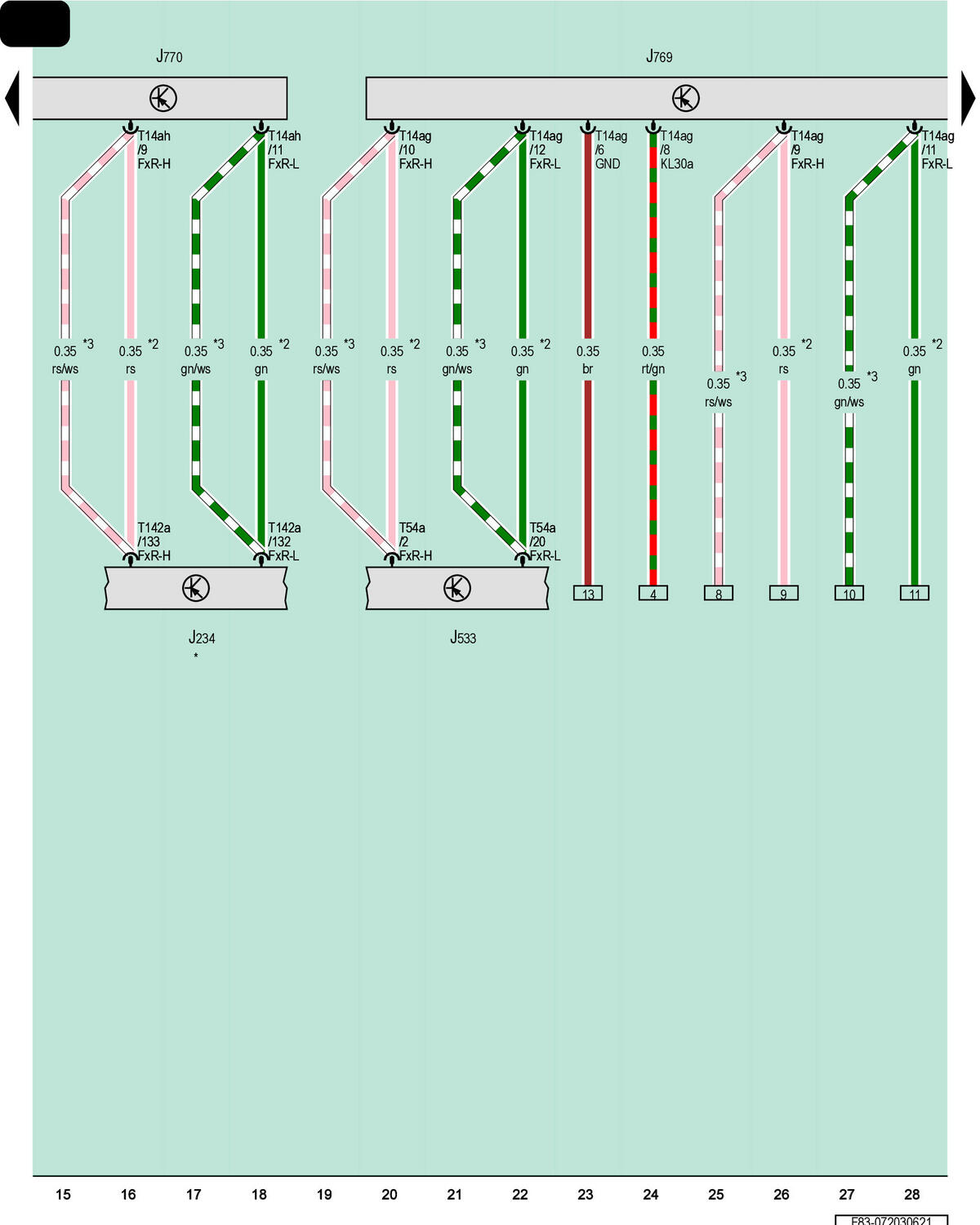

Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

T14ag

14-Pin Connector, Black

T14ah

14-Pin Connector, Black

T54a

54-Pin Connector, Black

T142a

142-Pin Connector, Yellow

*

Refer to Applicable Airbag Wiring Diagram

*2

Omitted as a Running Change

*3

Running Change
