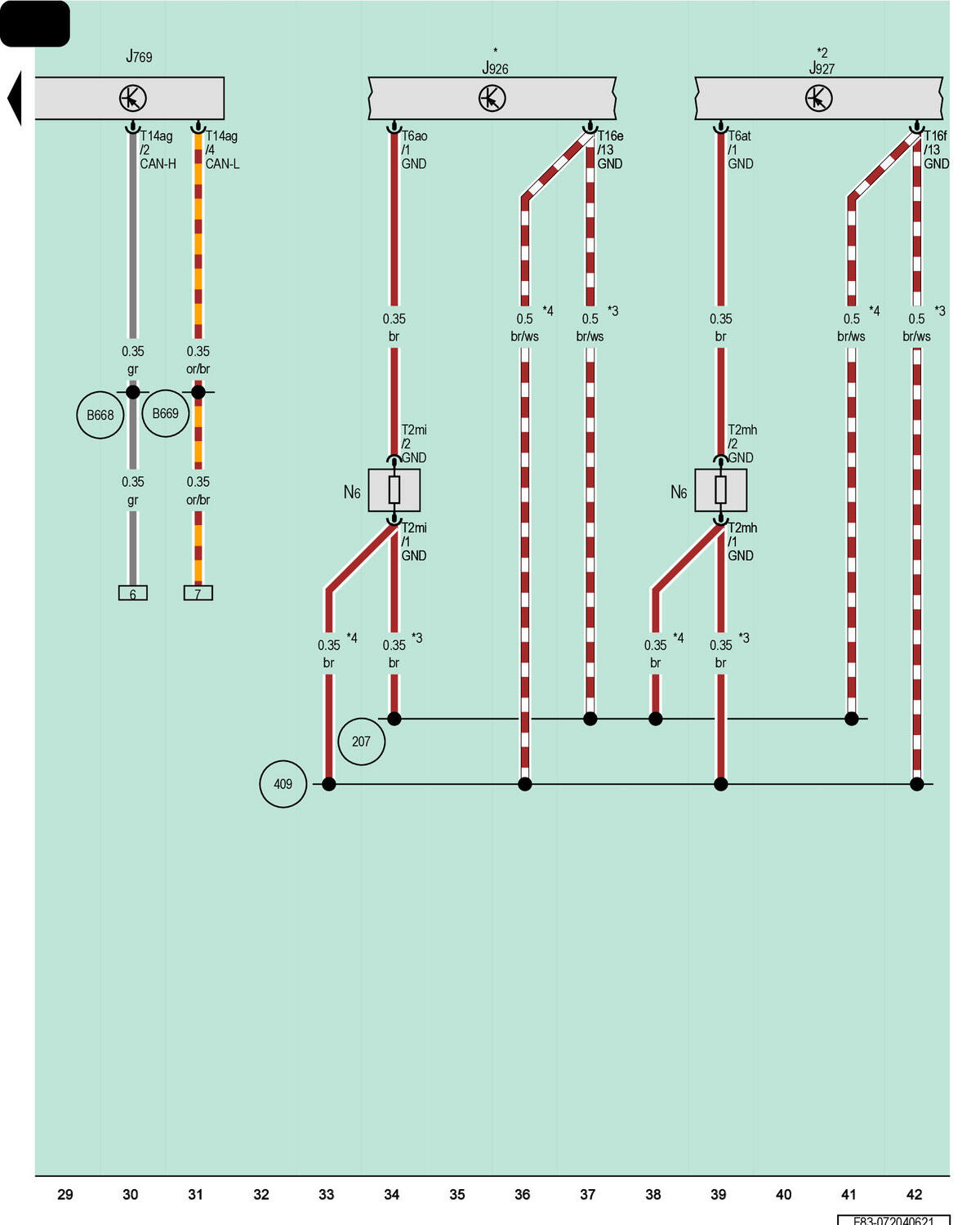

Lane Change Assistance Control Module, Driver Side Rear Door Control Module, Passenger Side Rear Door Control Module

Courtesy of AUDI OF AMERICA, LLC

J769

Lane Change Assistance Control Module

J926

Driver Side Rear Door Control Module

J927

Passenger Side Rear Door Control Module

N6

Series Resistor

T2mh

2-Pin Connector

T2mi

2-Pin Connector

T6ao

6-Pin Connector, Brown

T6at

6-Pin Connector

T14ag

14-Pin Connector, Black

T16e

16-Pin Connector, Black

T16f

16-Pin Connector, Black

207

Ground Connection (in Left Rear Door Wiring Harness)

409

Ground Connection 3 (in Right Rear Door Wiring Harness)

B668

CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Driver Door Control Module Wiring Diagram

*2

Refer to Applicable Front Passenger Door Control Module Wiring Diagram

*3

For LHD Vehicles

*4

For RHD Vehicles
