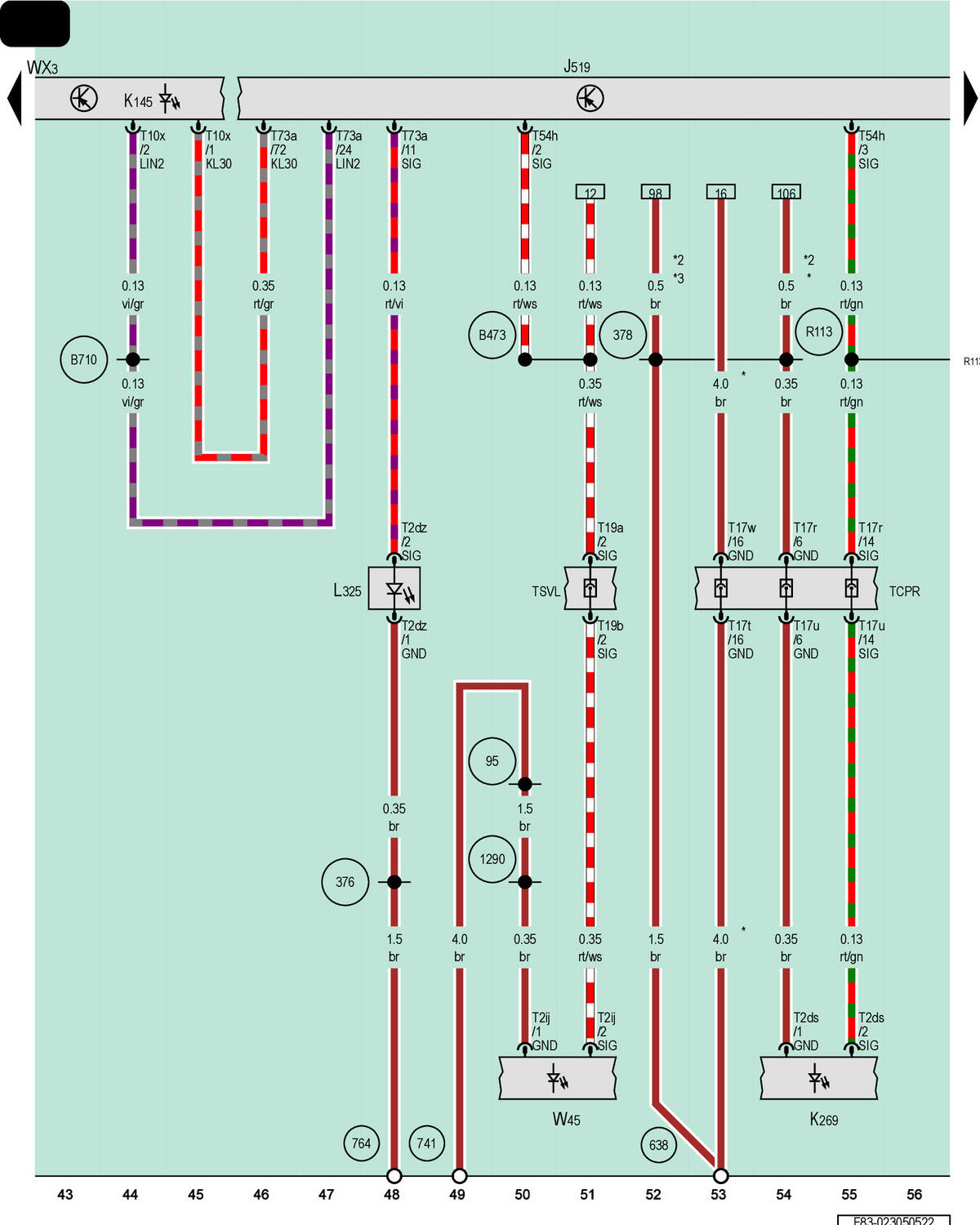

Vehicle Electrical System Control Module, Right Front FOOTWELL Lamp, Front Luggage Compartment Lamp, Left Front Seat Coupling Station, Front Roof Module, Left Rear FOOTWELL Lamp
J519
Vehicle Electrical System Control Module
K145
Front Passenger Airbag -Disabled- Indicator Lamp
K269
Right Front Footwell Lamp
L325
Front Luggage Compartment Lamp
T2ds
2-Pin Connector, Black
T2dz
2-Pin Connector, Black
T2ij
2-Pin Connector, Black
T10x
10-Pin Connector, Black
T17r
17-Pin Connector, Brown
T17t
17-Pin Connector, Blue
T17u
17-Pin Connector, Brown
T17w
17-Pin Connector, Blue
T19a
19-Pin Connector, Black
T19b
19-Pin Connector, Black
T54h
54-Pin Connector, Black
T73a
73-Pin Connector, Black
TCPR
Coupling Point on Instrument Panel, Right
TSVL
Left Front Seat Coupling Station
WX3
Front Roof Module
W45
Left Rear Footwell Lamp
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
376
Ground Connection 11 (in Main Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
741
Ground Connection Under Left Front Seat
764
Ground Connection Inside Left Front Wheel Housing
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
B473
Connection 9 (in Main Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
R113
Ambient Lighting Connection (in Right Front Door Wiring Harness)
*
For LHD Vehicles
*2
Depending on Equipment
*3
For RHD Vehicles
