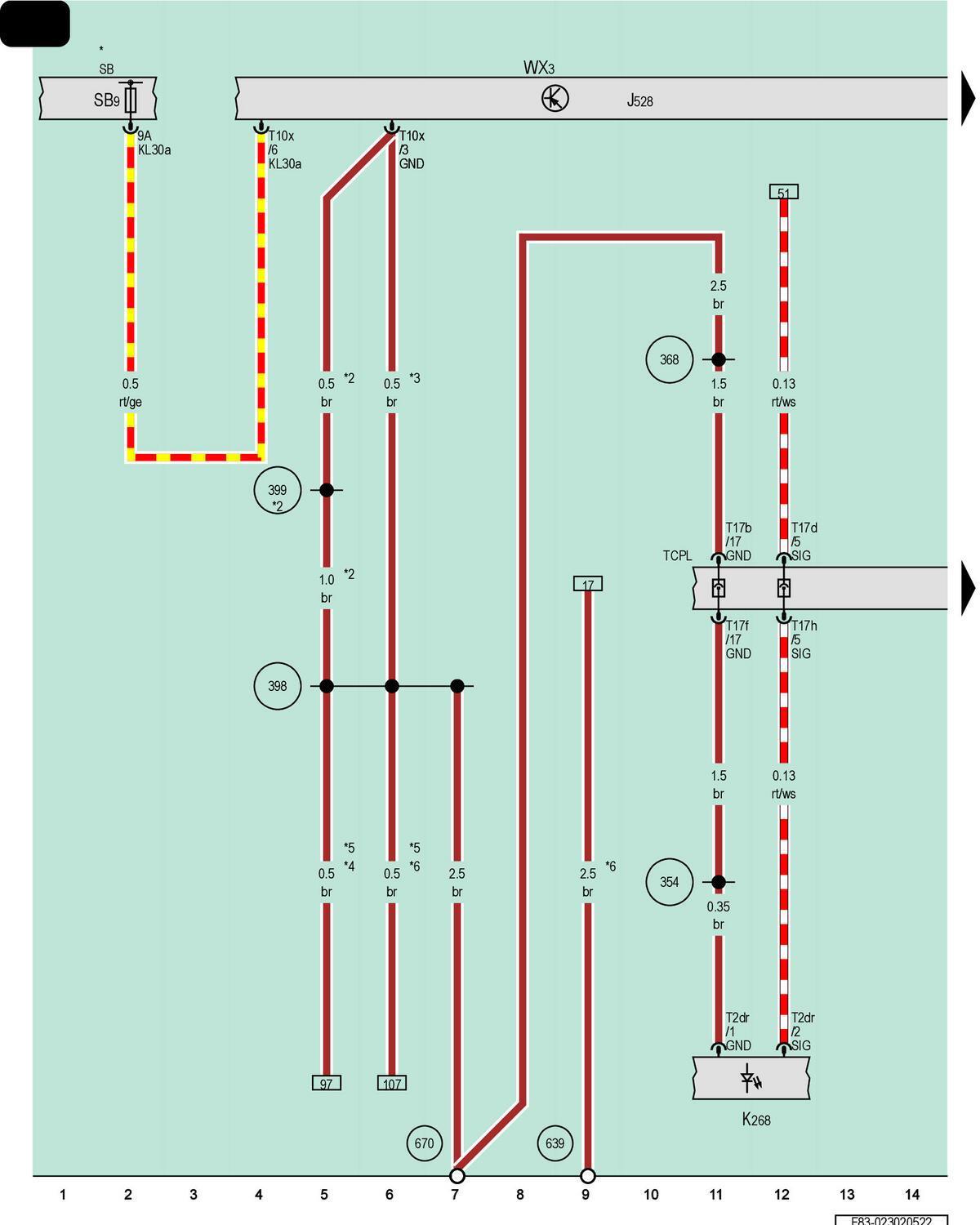

Left Front FOOTWELL Lamp, Front Roof Module
J528
Roof Electronics Control Module
K268
Left Front Footwell Lamp
SB
Fuse Panel B
SB9
Fuse 9 (On Fuse Panel B)
T2dr
2-Pin Connector, Black
T10x
10-Pin Connector, Black
T17b
17-Pin Connector, Brown
T17d
17-Pin Connector, Blue
T17f
17-Pin Connector, Brown
T17h
17-Pin Connector, Blue
TCPL
Coupling Point on Instrument Panel, Left
WX3
Front Roof Module
354
Ground Connection 6 (in Instrument Panel Wiring Harness)
368
Ground Connection 3 (in Main Wiring Harness)
398
Ground Connection 33 (in Main Wiring Harness)
399
Ground Connection 34 (in Main Wiring Harness)
639
Ground Connection on Left A-Pillar
670
Ground Connection 2 on Left A-Pillar
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Running Change
*3
Omitted as a Running Change
*4
For LHD Vehicles
*5
Depending on Equipment
*6
For RHD Vehicles
