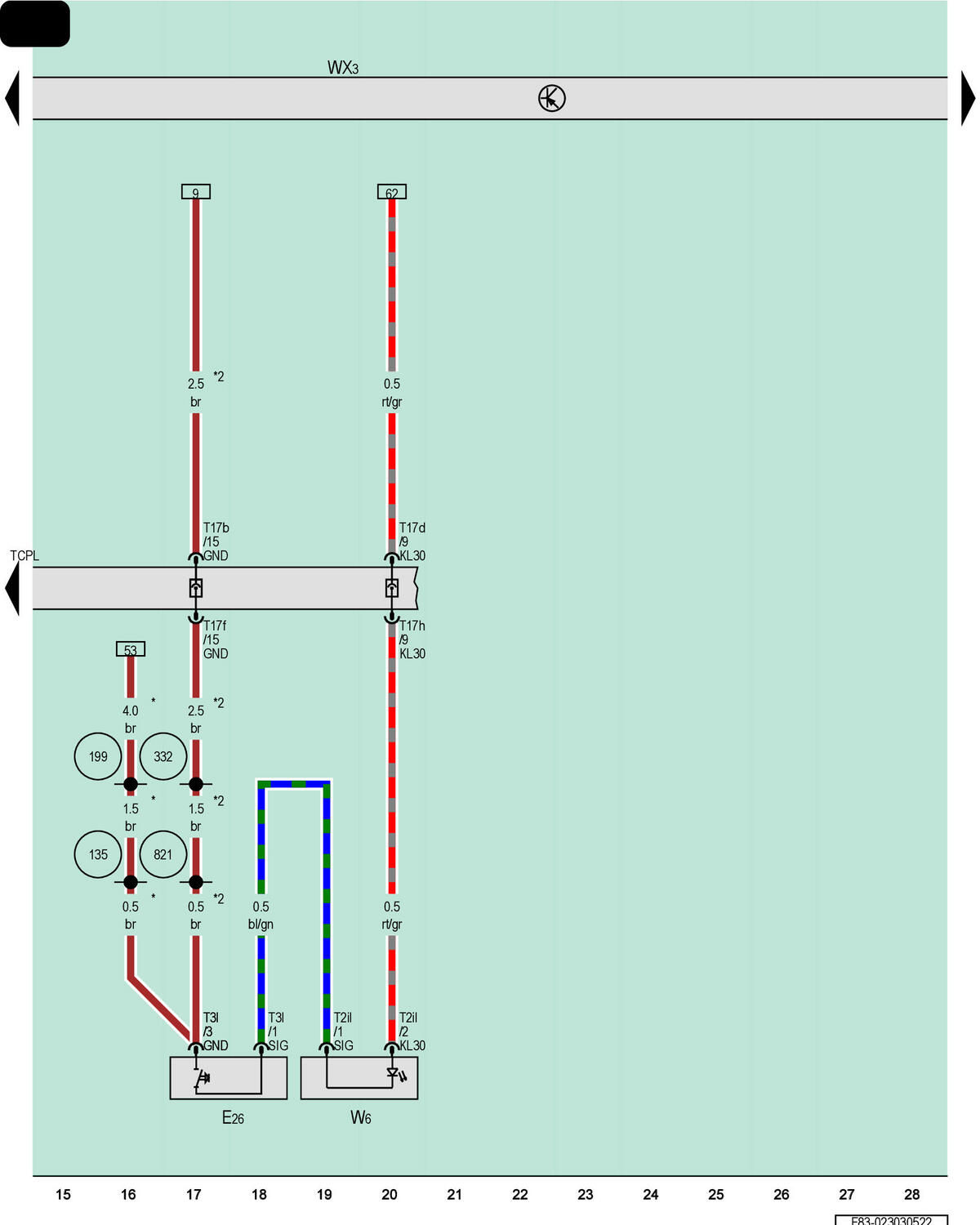

Glove Compartment Lamp Switch, Front Roof Module, Glove Compartment Lamp

Courtesy of AUDI OF AMERICA, LLC

E26

Glove Compartment Lamp Switch

T2il

2-Pin Connector, Black

T3l

3-Pin Connector, Black

T17b

17-Pin Connector, Brown

T17d

17-Pin Connector, Blue

T17f

17-Pin Connector, Brown

T17h

17-Pin Connector, Blue

TCPL

Coupling Point on Instrument Panel, Left

WX3

Front Roof Module

W6

Glove Compartment Lamp

135

Ground Connection 2 (in Instrument Panel Wiring Harness)

199

Ground Connection 3 (in Instrument Panel Wiring Harness)

332

Ground Connection 4 (in Instrument Panel Wiring Harness)

821

Ground Connection 7 (in Instrument Panel Wiring Harness)

*

For LHD Vehicles

*2

For RHD Vehicles
