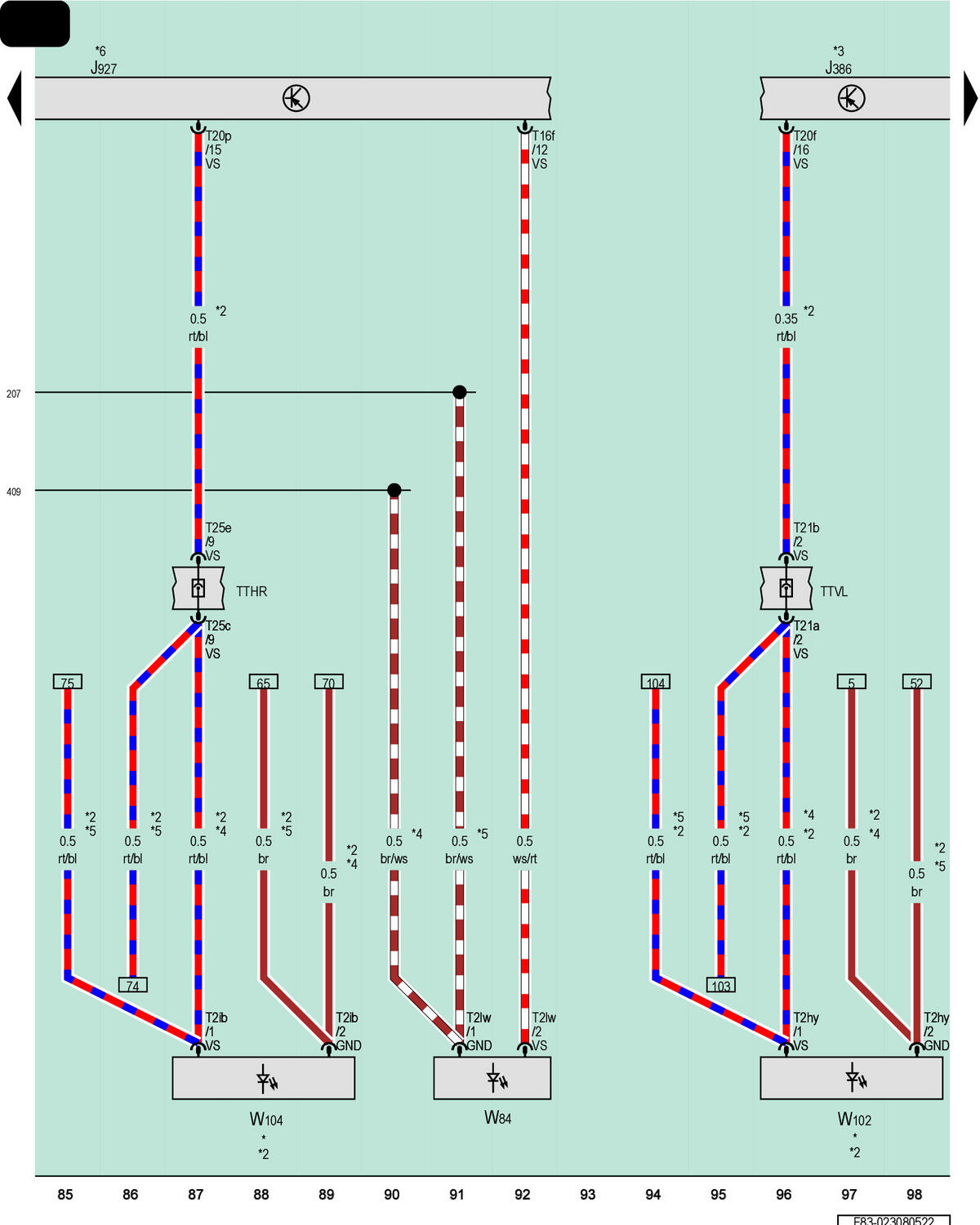

Driver Door Control Module, Passenger Side Rear Door Control Module, Passenger Side Rear Entry Lamp, Driver Side Sill Panel Strip Ambient Lighting Lamp, Passenger Side Rear Side Sill Panel Strip Ambient Lighting Lamp
J386
Driver Door Control Module
J927
Passenger Side Rear Door Control Module
T2hy
2-Pin Connector, Black
T2ib
2-Pin Connector, Black
T2lw
2-Pin Connector, Black
T16f
16-Pin Connector, Black
T20f
20-Pin Connector, White
T20p
20-Pin Connector, Black
T21a
21-Pin Connector, Black
T21b
21-Pin Connector, Black
T25c
25-Pin Connector, Green
T25e
25-Pin Connector, Green
TTHR
Right Rear Door Coupling Point
TTVL
Left Front Door Coupling Point
W84
Passenger Side Rear Entry Lamp
W102
Driver Side Sill Panel Strip Ambient Lighting Lamp
W104
Passenger Side Rear Side Sill Panel Strip Ambient Lighting Lamp
207
Ground Connection (in Left Rear Door Wiring Harness)
409
Ground Connection 3 (in Right Rear Door Wiring Harness)
*
Pre-Wired Component
*2
Depending on Equipment
*3
Refer to Applicable Driver Door Control Module Wiring Diagram
*4
For LHD Vehicles
*5
For RHD Vehicles
*6
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
