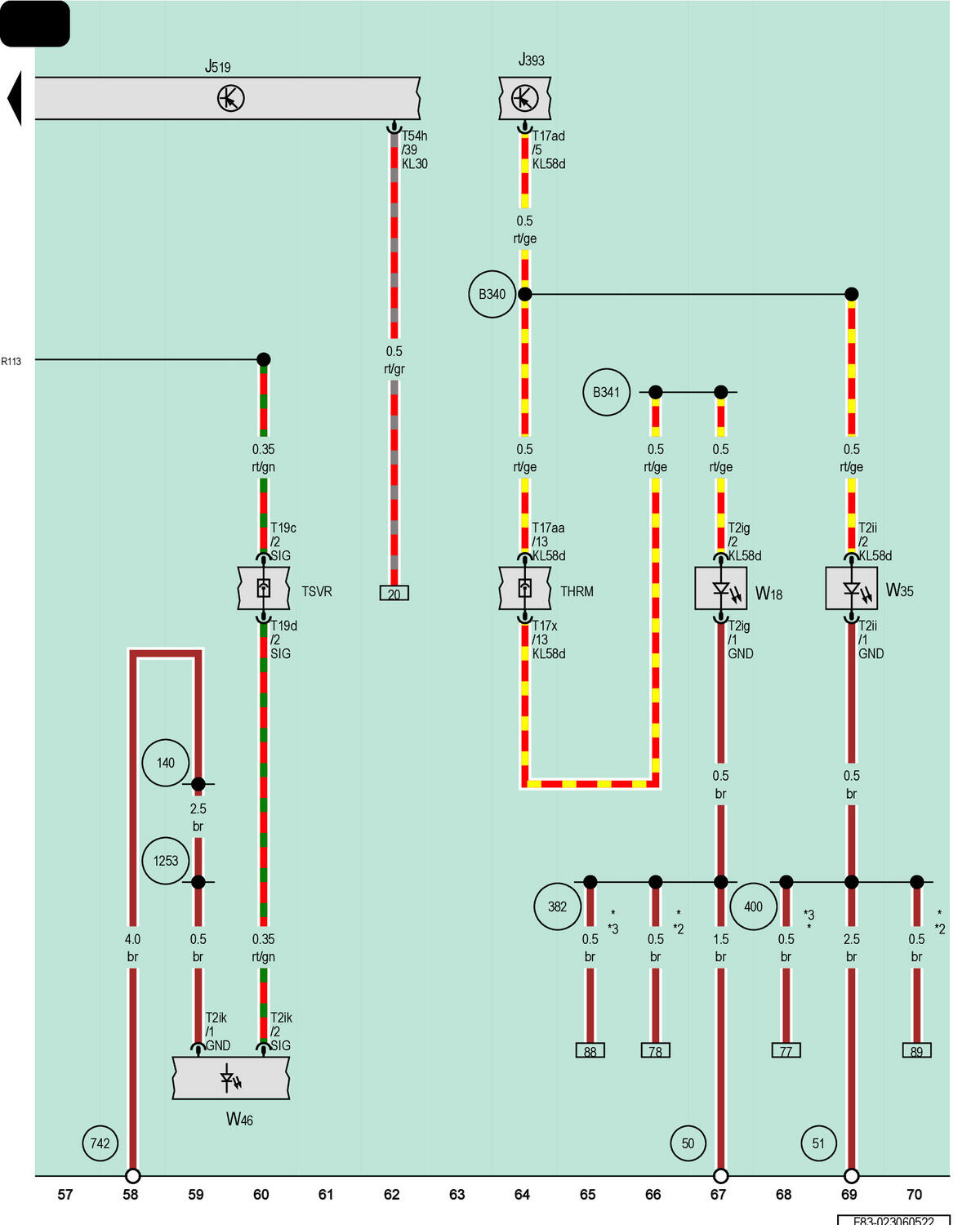

Comfort System Central Control Module, Vehicle Electrical System Control Module, Left Luggage Compartment Lamp, Right Luggage Compartment Lamp, Right Rear FOOTWELL Lamp
J393
Comfort System Central Control Module
J519
Vehicle Electrical System Control Module
T2ig
2-Pin Connector, Black
T2ii
2-Pin Connector, Black
T2ik
2-Pin Connector, Black
T17aa
17-Pin Connector, Black
T17ad
17-Pin Connector, Brown
T17x
17-Pin Connector, Black
T19c
19-Pin Connector, Black
T19d
19-Pin Connector, Black
T54h
54-Pin Connector, Black
THRM
Coupling Point in Luggage Compartment, Center
TSVR
Right Front Seat Coupling Station
W18
Left Luggage Compartment Lamp
W35
Right Luggage Compartment Lamp
W46
Right Rear Footwell Lamp
50
Ground Connection in Luggage Compartment, Left
51
Ground Connection in Luggage Compartment, Right
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
382
Ground Connection 17 (in Main Wiring Harness)
400
Ground Connection 35 (in Main Wiring Harness)
742
Ground Connection Under Right Front Seat
1253
Ground Connection 6 (in Seat Adjustment Wiring Harness)
B340
Connection 58d (in Main Wiring Harness) 1
B341
Connection 58d (in Main Wiring Harness) 2
R113
Ambient Lighting Connection (in Right Front Door Wiring Harness)
*
Depending on Equipment
*2
For LHD Vehicles
*3
For RHD Vehicles
