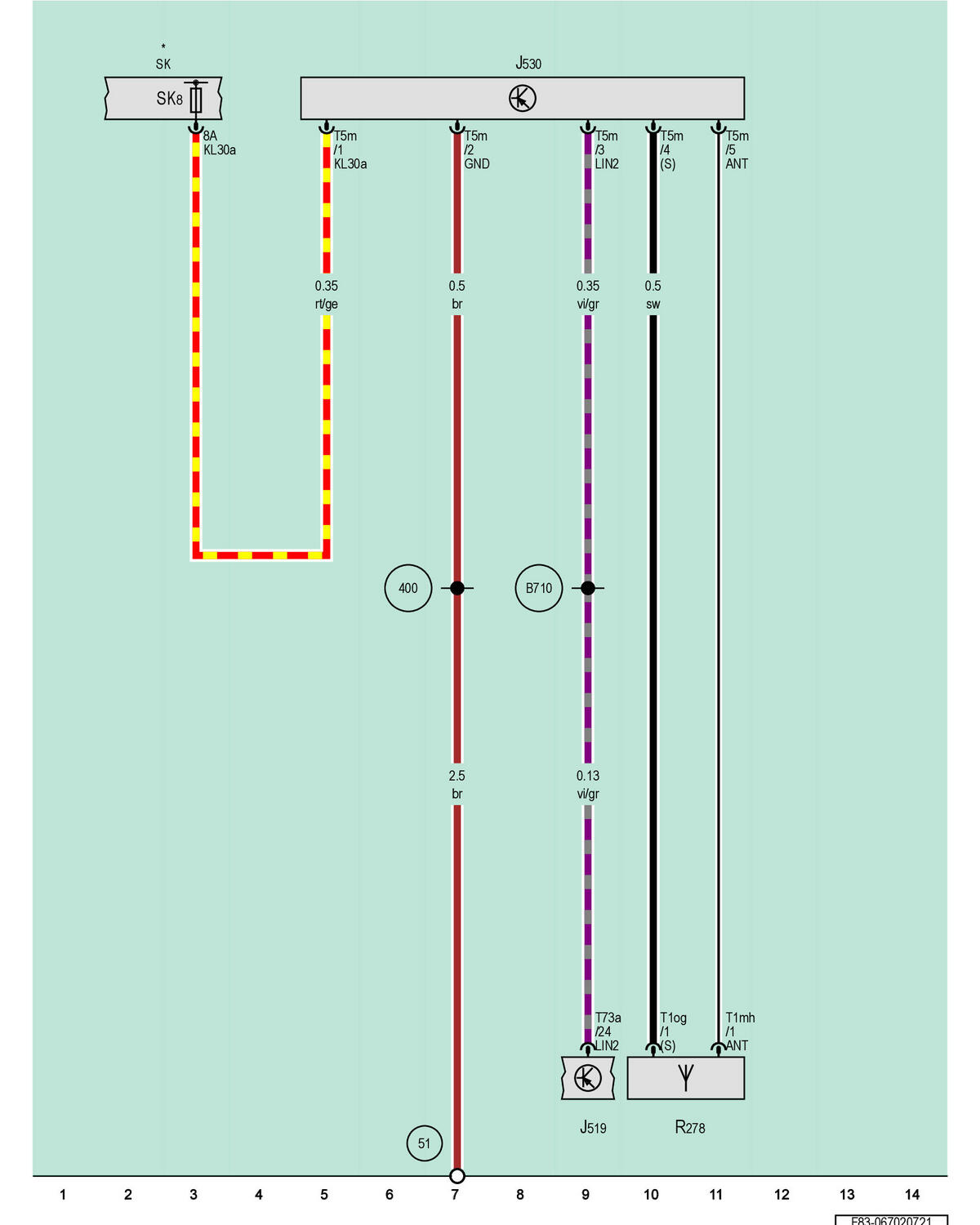

Vehicle Electrical System Control Module, Garage Door Opener Control Module, Garage Door Opener Programming Antenna
J519
Vehicle Electrical System Control Module
J530
Garage Door Opener Control Module
R278
Garage Door Opener Programming Antenna, In the Wiring Harness, On the Lower Right A-Pillar
SK
Fuse Panel K
SK8
Fuse 8 on Fuse Panel K
T1mh
1-Pin Connector
T1og
1-Pin Connector
T5m
5-Pin Connector, Black
T73a
73-Pin Connector, Black
51
Ground Connection in Luggage Compartment, Right
400
Ground Connection 35 (in Main Wiring Harness)
B710
LIN Bus Connection 5 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment
