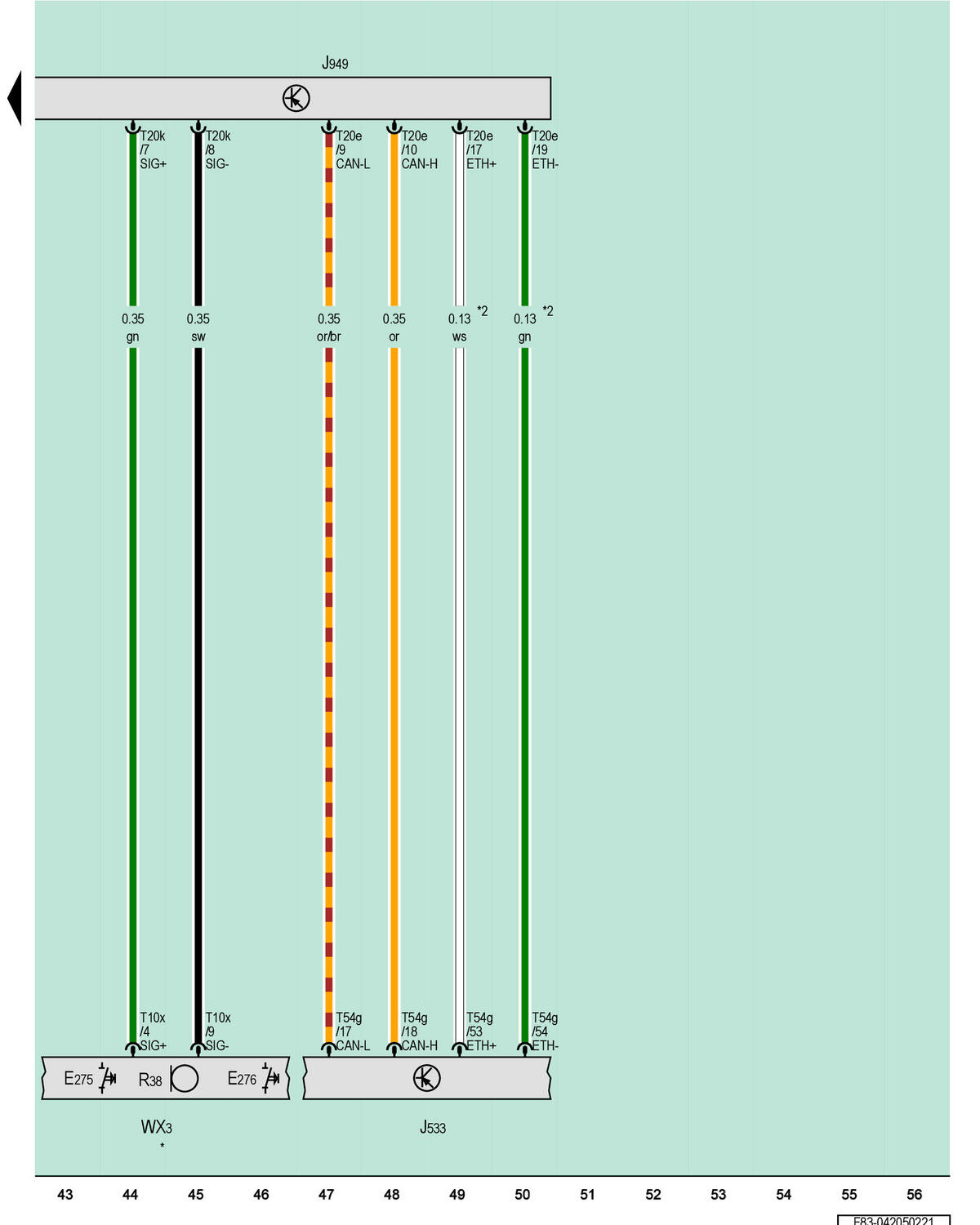

Roadside Assistance Button, Emergency Call Button, Data Bus On Board Diagnostic Interface, Control Module For Emergency Call Module And Communication Unit, Telephone Microphone, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

E275

Roadside Assistance Button

E276

Emergency Call Button

J533

Data Bus on Board Diagnostic Interface

J949

Control Module for Emergency Call Module and Communication Unit

R38

Telephone Microphone

T10x

10-Pin Connector, Black

T20e

20-Pin Connector, Black

T20k

20-Pin Connector, Naturally Cloudy

T54g

54-Pin Connector, Gray

WX3

Front Roof Module

*

Refer to Applicable Wiring Diagram for Interior Lamps

*2

Ethernet Data Wire
