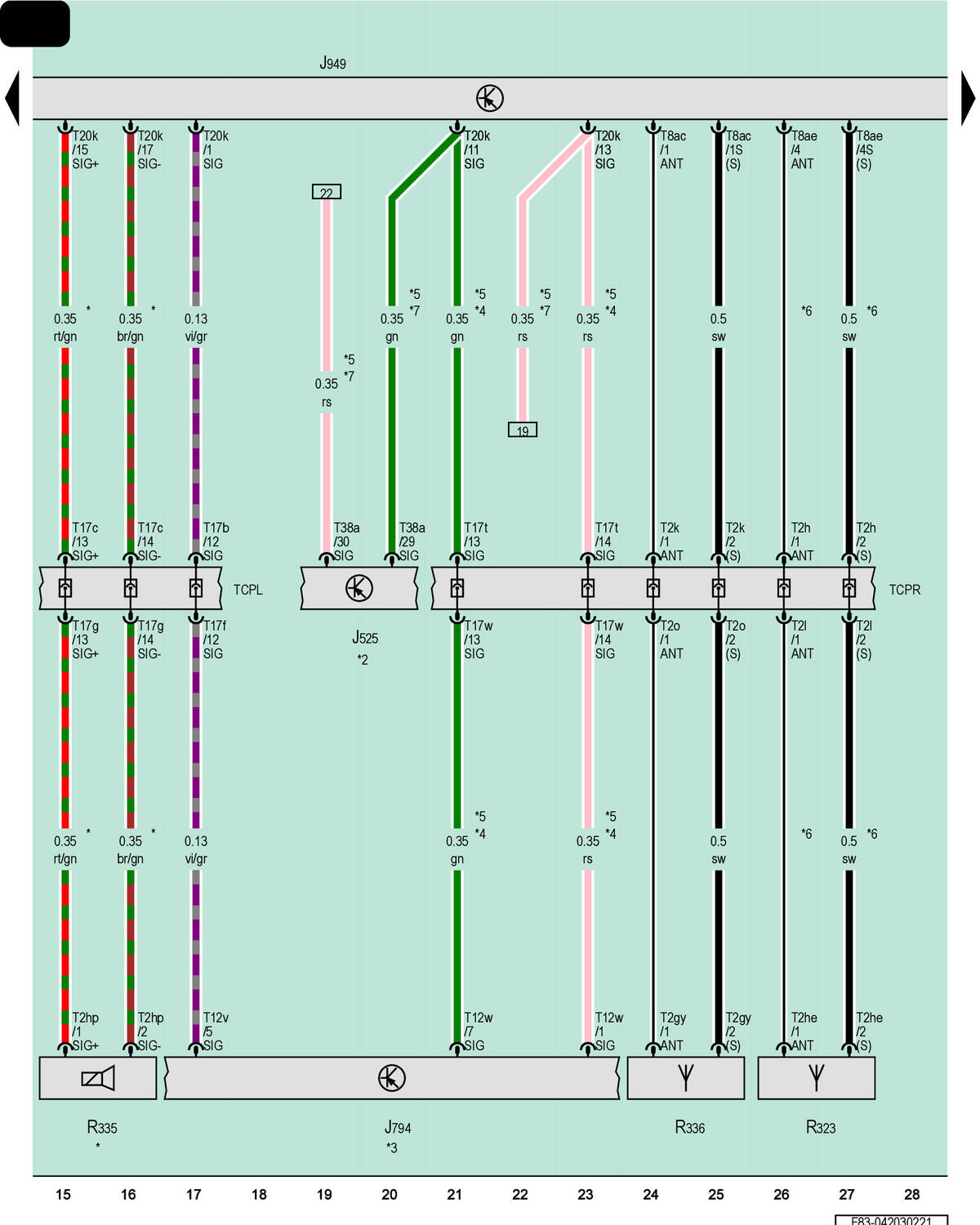

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Antenna 3, Emergency Call Module Speaker, Wireless Data Transfer Antenna
J525
Digital Sound System Control Module
J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
R323
Emergency Call Module Antenna 3, Windshield, Center
R335
Emergency Call Module Speaker
R336
Wireless Data Transfer Antenna, On the Interior Rearview Mirror
T2gy
2-Pin Connector, Naturally Cloudy
T2h
2-Pin Connector, Naturally Cloudy
T2he
2-Pin Connector, Purple
T2hp
2-Pin Connector, Brown
T2k
2-Pin Connector, White
T2l
2-Pin Connector, Naturally Cloudy
T2o
2-Pin Connector, White
T8ac
8-Pin Connector, White
T8ae
8-Pin Connector, Black
T12v
12-Pin Connector, Blue
T12w
12-Pin Connector, Green
T17b
17-Pin Connector, Brown
T17c
17-Pin Connector, Red
T17f
17-Pin Connector, Brown
T17g
17-Pin Connector, Red
T17t
17-Pin Connector, Blue
T17w
17-Pin Connector, Blue
T20k
20-Pin Connector, Naturally Cloudy
T38a
38-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
TCPR
Coupling Point on Instrument Panel, Right
*
For Vehicles with Emergency Call Function
*2
Refer to Applicable Sound System Wiring Diagram
*3
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*4
For Vehicles Without an Amplifier
*5
Audio Bus Data Bus Wire
*6
Country-Specific
*7
For Vehicles with an Amplifier
