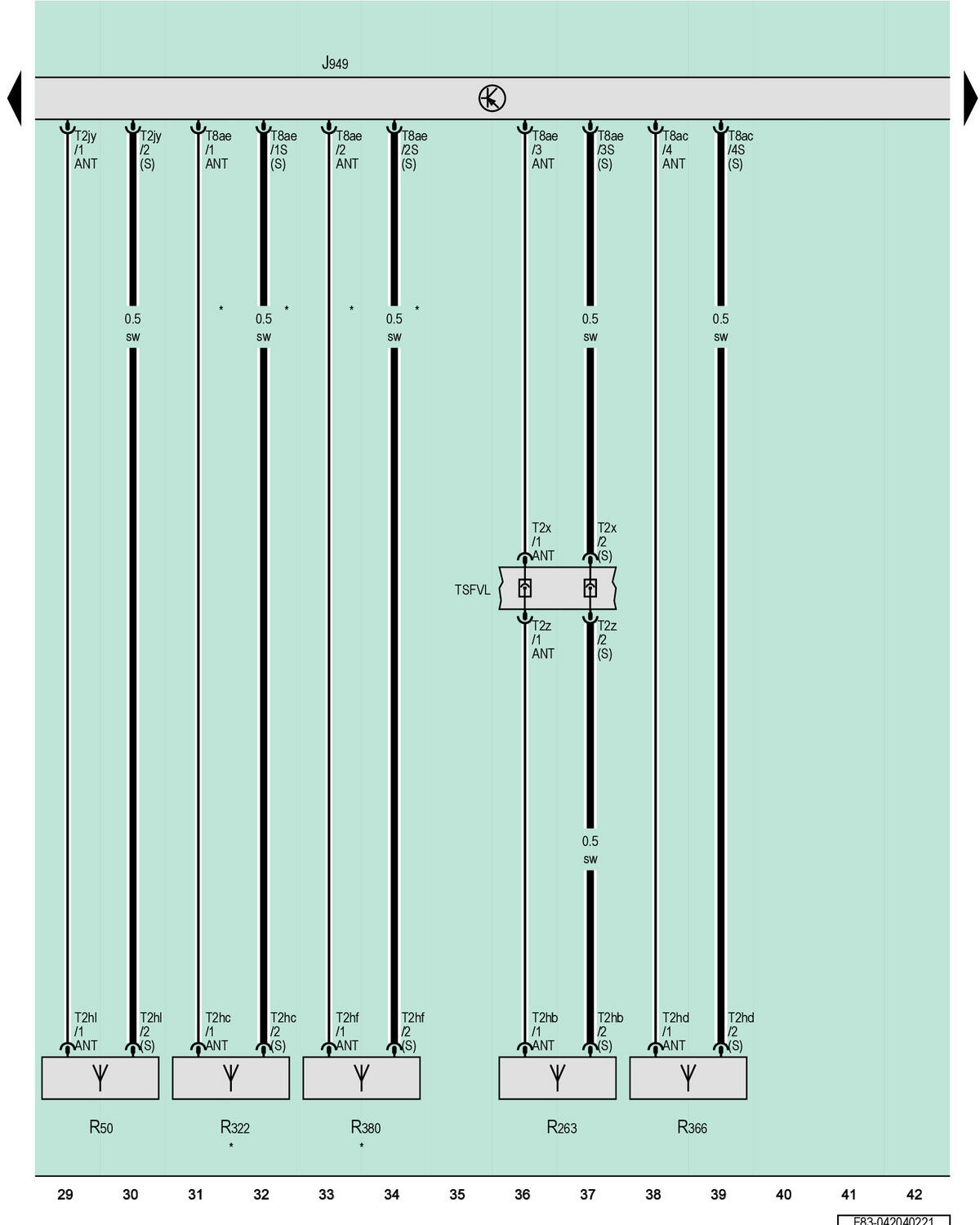

Control Module For Emergency Call Module And Communication Unit, GPS Antenna, Emergency Call Module Antenna, Emergency Call Module Antenna 2, Wireless Data Transfer Antenna 2, Emergency Call Module Antenna 4

Courtesy of AUDI OF AMERICA, LLC

J949

Control Module for Emergency Call Module and Communication Unit

R50

GPS Antenna, On the Interior Rearview Mirror

R263

Emergency Call Module Antenna, In the Front Bumper, Left

R322

Emergency Call Module Antenna 2, Under the Rear Shelf, Left

R366

Wireless Data Transfer Antenna 2, Under the Rear Shelf, Right

R380

Emergency Call Module Antenna 4, In the Luggage Compartment

T2hb

2-Pin Connector, Purple

T2hc

2-Pin Connector, Purple

T2hd

2-Pin Connector, Gray

T2hf

2-Pin Connector, Purple

T2hl

2-Pin Connector, Blue

T2jy

2-Pin Connector, Pink

T2x

2-Pin Connector, White

T2z

2-Pin Connector, White

T8ac

8-Pin Connector, White

T8ae

8-Pin Connector, Black

TSFVL

Coupling Point on Left Front Bumper

*

Country-Specific
