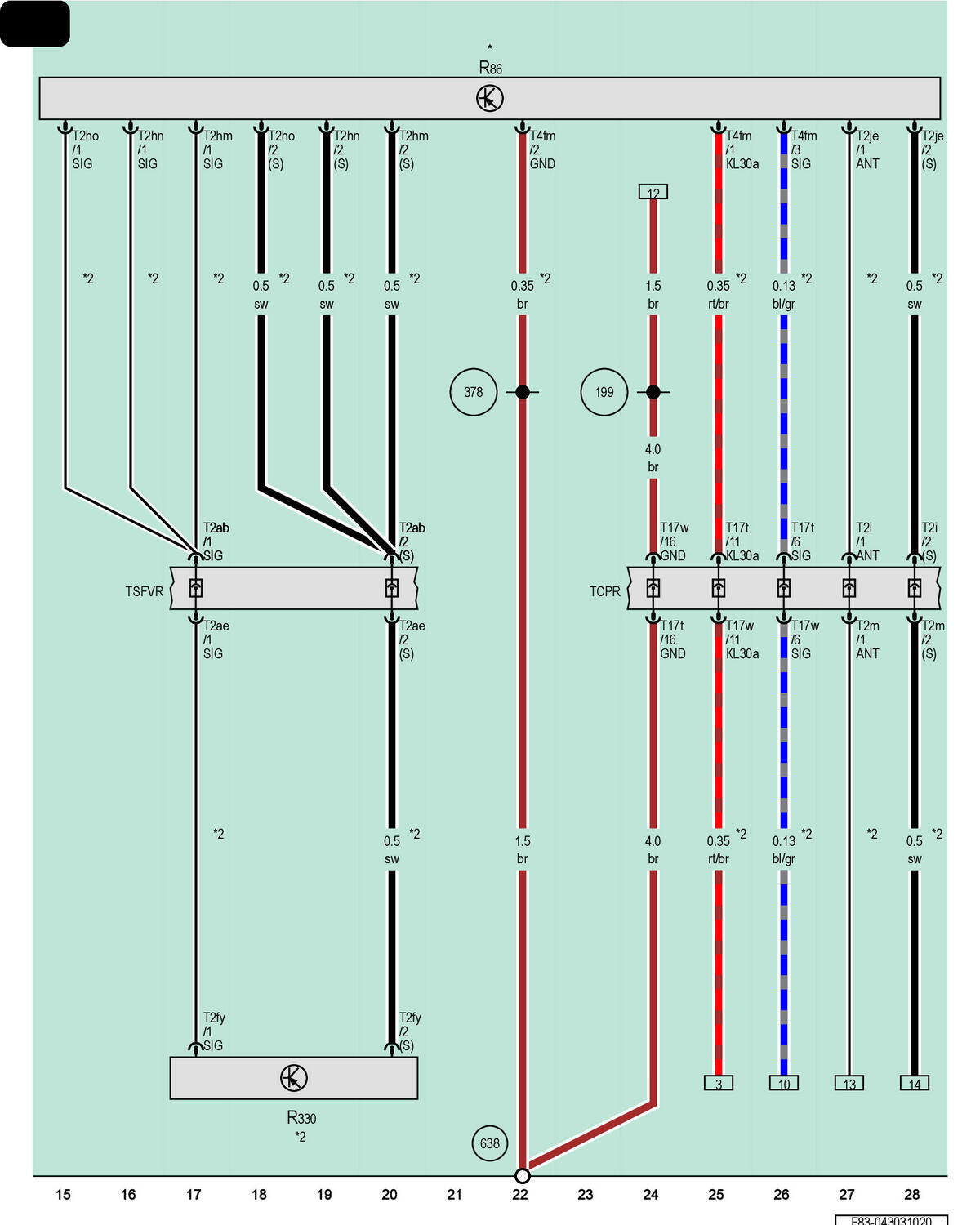

Cellular Telephone Amplifier, LTE Antenna 3
R86
Cellular Telephone Amplifier
R330
LTE Antenna 3
T2ab
2-Pin Connector, Purple
T2ae
2-Pin Connector, Purple
T2fy
2-Pin Connector, Purple
T2hm
2-Pin Connector, Purple
T2hn
2-Pin Connector, Naturally Cloudy
T2ho
2-Pin Connector, Yellow
T2i
2-Pin Connector, Green
T2je
2-Pin Connector, Black
T2m
2-Pin Connector, Green
T4fm
4-Pin Connector, Black
T17t
17-Pin Connector, Blue
T17w
17-Pin Connector, Blue
TCPR
Coupling Point on Instrument Panel, Right
TSFVR
Coupling Point on Right Front Bumper
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
*
For Vehicles with Cell Phone Preparation
*2
For Vehicles with a Cell Phone Amplifier
