Overview - Assembly Mounts

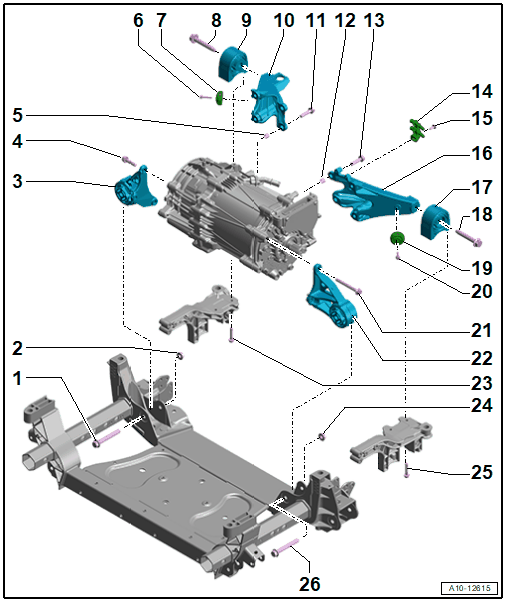

Fig 1: Exploded View Of Front Assembly Mounts

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Replace after removing
Nut
- Replace after removing
- 70 Nm +90°
Right Front Motor Support
- With integrated motor mount
- Refer to FRONT MOTOR SUPPORT, REMOVING AND INSTALLING
Bolt
- Quantity: 3
- 55 Nm
Alignment Sleeve
- Quantity: 2
Bolt
- Replace after removing
- 8 Nm +40°
Vibration Damper
Bolt
- 160 Nm
Right Rear Motor Mount
- Removing and Installing. Refer to RIGHT REAR MOTOR SUPPORT, REMOVING AND INSTALLING .
Right Rear Motor Support
- Refer to RIGHT REAR MOTOR SUPPORT, REMOVING AND INSTALLING
Bolt
- Quantity: 4
- 55 Nm
Alignment Sleeve
- Quantity: 2
Bolt
- Quantity: 4
- 55 Nm
Coolant Lines
Bolt
- 8 Nm
Left Rear Motor Support
- Refer to LEFT REAR MOTOR SUPPORT, REMOVING AND INSTALLING
Left Rear Motor Mount
- Removing and Installing. Refer to LEFT REAR MOTOR SUPPORT, REMOVING AND INSTALLING .
Bolt
- 160 Nm
Vibration Damper
Bolt
- Replace after removing
- 8 Nm +40°
Bolt
- Quantity: 3
- 55 Nm
Left Front Motor Support
- With integrated motor mount
- Refer to FRONT MOTOR SUPPORT, REMOVING AND INSTALLING
Bolt
- Quantity: 2
- Replace after removing
- 20 Nm +45°
Nut
- Replace after removing
- 70 Nm +90°
Bolt
- Quantity: 2
- Replace after removing
- 20 Nm +45°
Bolt
- Replace after removing
