Warning Label, Checking

Procedure

• A warning label is located on all high-voltage components.
• For maintenance work pay attention that this warning label is not damaged or dirty and all high-voltage components are present.

Condition

• Replace the warning label if necessary.

Warning labels are on the following assembly groups:

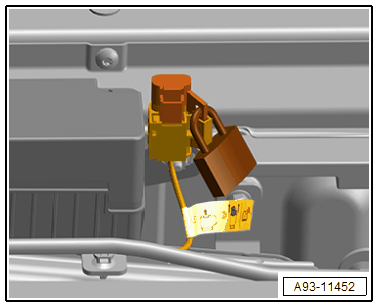

• Left rescue tag near the E-box in front of the plenum chamber.

  Courtesy of AUDI OF AMERICA, LLC

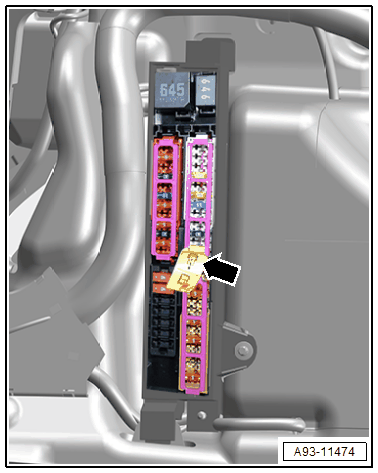

• Rescue tag in the vehicle interior behind the right luggage compartment side trim panel.

  Courtesy of AUDI OF AMERICA, LLC

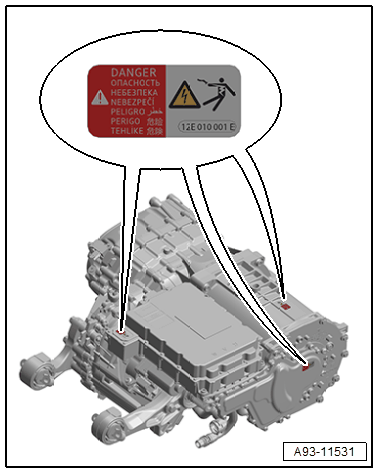

• Front Axle Electric Drive Motor -V662-

  Courtesy of AUDI OF AMERICA, LLC

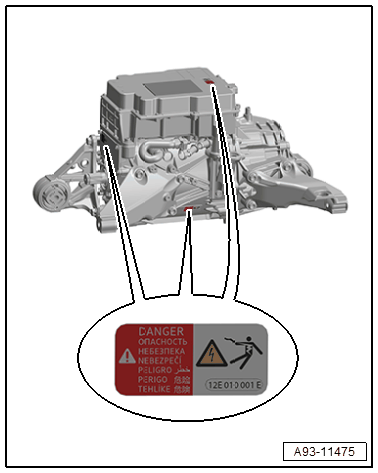

• Rear Axle Electric Drive Motor -V663-

  Courtesy of AUDI OF AMERICA, LLC

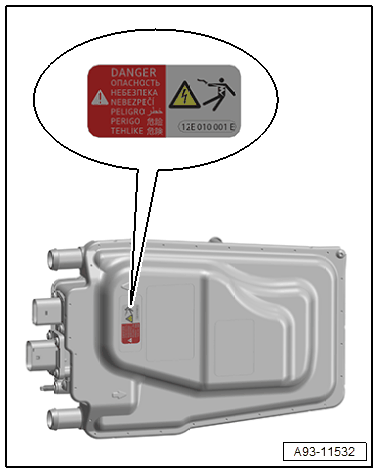

• Electrical A/C Compressor -V470-

  Courtesy of AUDI OF AMERICA, LLC

• High-Voltage Heater (In-Line) -Z189-

  Courtesy of AUDI OF AMERICA, LLC

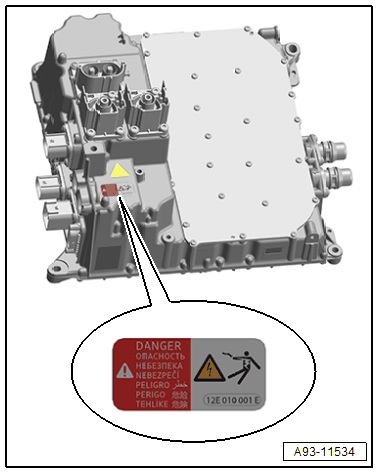

• High-Voltage Battery Charger 1 -AX4-

  Courtesy of AUDI OF AMERICA, LLC

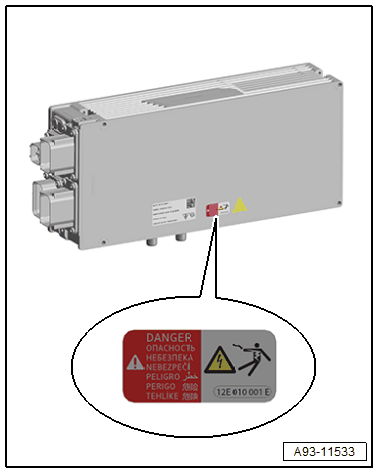

• Power Output Protection with Boost Function -J1178-

  Courtesy of AUDI OF AMERICA, LLC

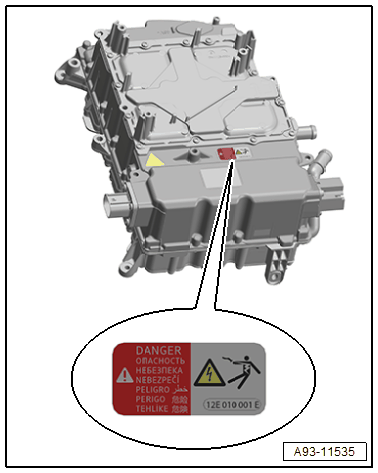

• Voltage Converter for 800 V, 400 V, 48 V, 12 V -A48-

  Courtesy of AUDI OF AMERICA, LLC
