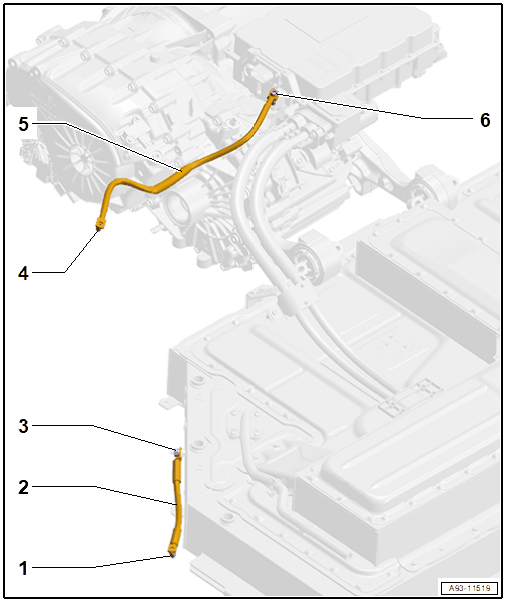

Component Location Overview - Potential Equalization Cable, Rear

Component Location Overview - Potential Equalization Cable, Rear

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • 8 Nm
2. Potential Equalization Cable for High-Voltage Battery 1 -AX2-
3. Nut
   • 8 Nm
4. Nut
   • 8 Nm
5. Potential Equalization Cable
   • For the Electric Drive Control Module on Rear Axle -J1235-
6. Bolt
   • 20 Nm
