Electric Drive Control Module On Rear Axle J1235, Removing And Installing: Removing

If the control module is replaced, perform the test plan for replacing the control module.

-- Perform the "Control Module, Replacing" function using the Vehicle Diagnostic Tester . Refer to Diagnostic Entries .

Continuation

-- Refer to Rear Motor, Removing .

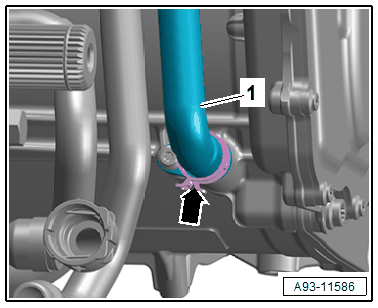

-- Loosen the hose clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

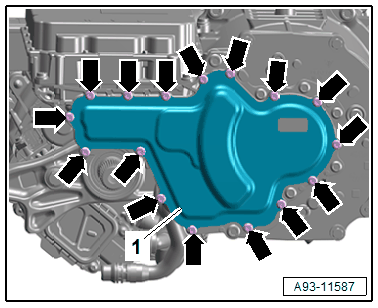

-- Remove the bolts -arrows- and remove the cover -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

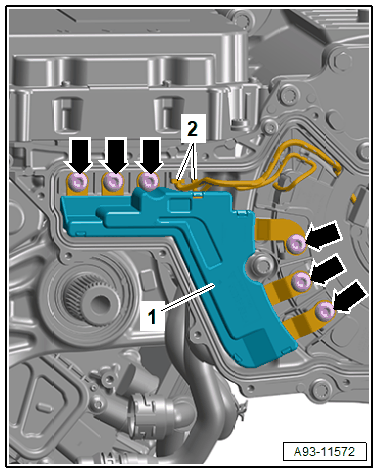

-- Remove the power bridge -1-.

-- Disconnect the connectors -2- to do so counterhold on the connector housing.

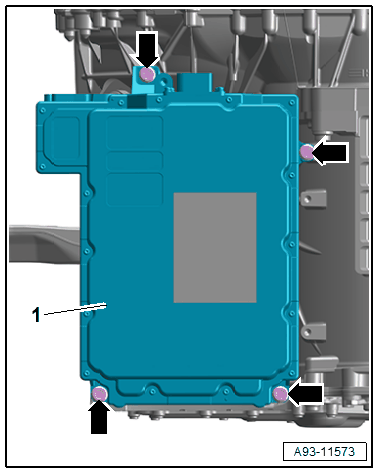

-- Remove the bolts -arrows- and then remove the control module -1-.

Courtesy of AUDI OF AMERICA, LLC

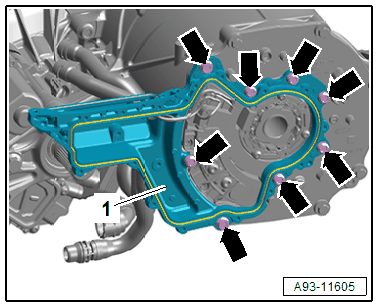

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the threaded connector -1-.
