Overview - Charging Socket 2

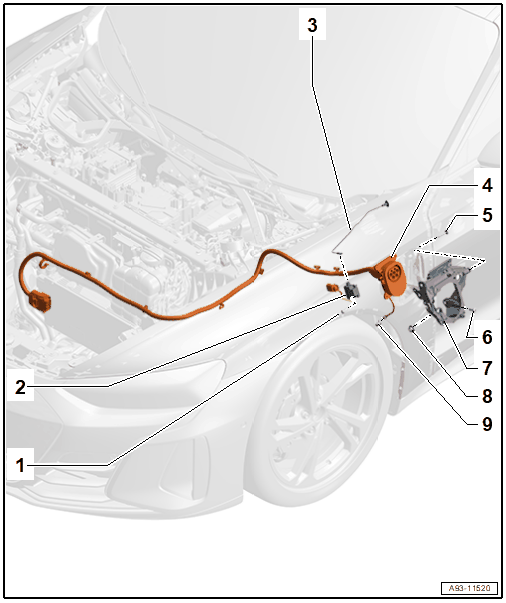

Fig 1: Exploded View Of Charging Socket 2

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 1.5 Nm
High-Voltage Charging Connector Lock 2 Adjuster -F499-
- Refer to HIGH-VOLTAGE CHARGING CONNECTOR LOCK 2 ADJUSTER F499, REMOVING AND INSTALLING
Emergency Release Cable
High-Voltage Battery Charging Socket 2 -UX5-
- Refer to High-Voltage Battery Charging Socket 2 UX5, Removing and Installing .
Bolt
- 4.5 Nm
Bolt
- Quantity: 4
- 9 Nm
Mount for High-Voltage Battery Charging Socket
Nut
- Quantity: 2
- 8 Nm
Nut
- Tightening specification. Refer to COMPONENT LOCATION OVERVIEW - POTENTIAL EQUALIZATION CABLE .
