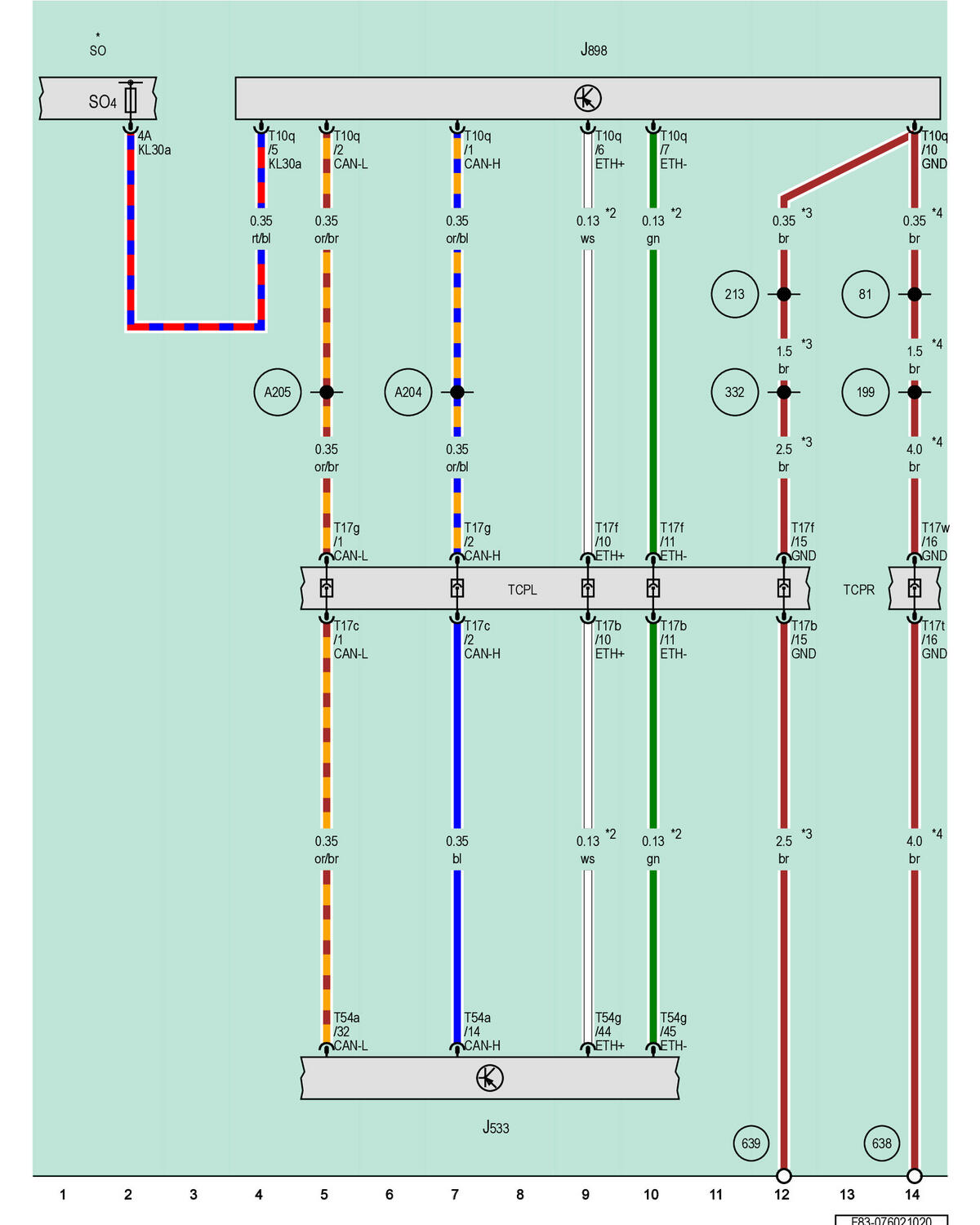

Windshield Projection Head Up Display Control Module
J533
Data Bus on Board Diagnostic Interface
J898
Windshield Projection Head Up Display Control Module
SO
Fuse Panel O
SO4
Fuse 4 on Fuse Panel O
T10q
10-Pin Connector, Black
T17b
17-Pin Connector, Brown
T17c
17-Pin Connector, Red
T17f
17-Pin Connector, Brown
T17g
17-Pin Connector, Red
T17t
17-Pin Connector, Blue
T17w
17-Pin Connector, Blue
T54a
54-Pin Connector, Black
T54g
54-Pin Connector, Gray
TCPL
Coupling Point on Instrument Panel, Left
TCPR
Coupling Point on Instrument Panel, Right
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
213
Ground Connection (in Instrument Panel Wiring Harness)
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
638
Ground Connection on Right A-Pillar
639
Ground Connection on Left A-Pillar
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Ethernet Data Wire
*3
For LHD Vehicles
*4
For RHD Vehicles
