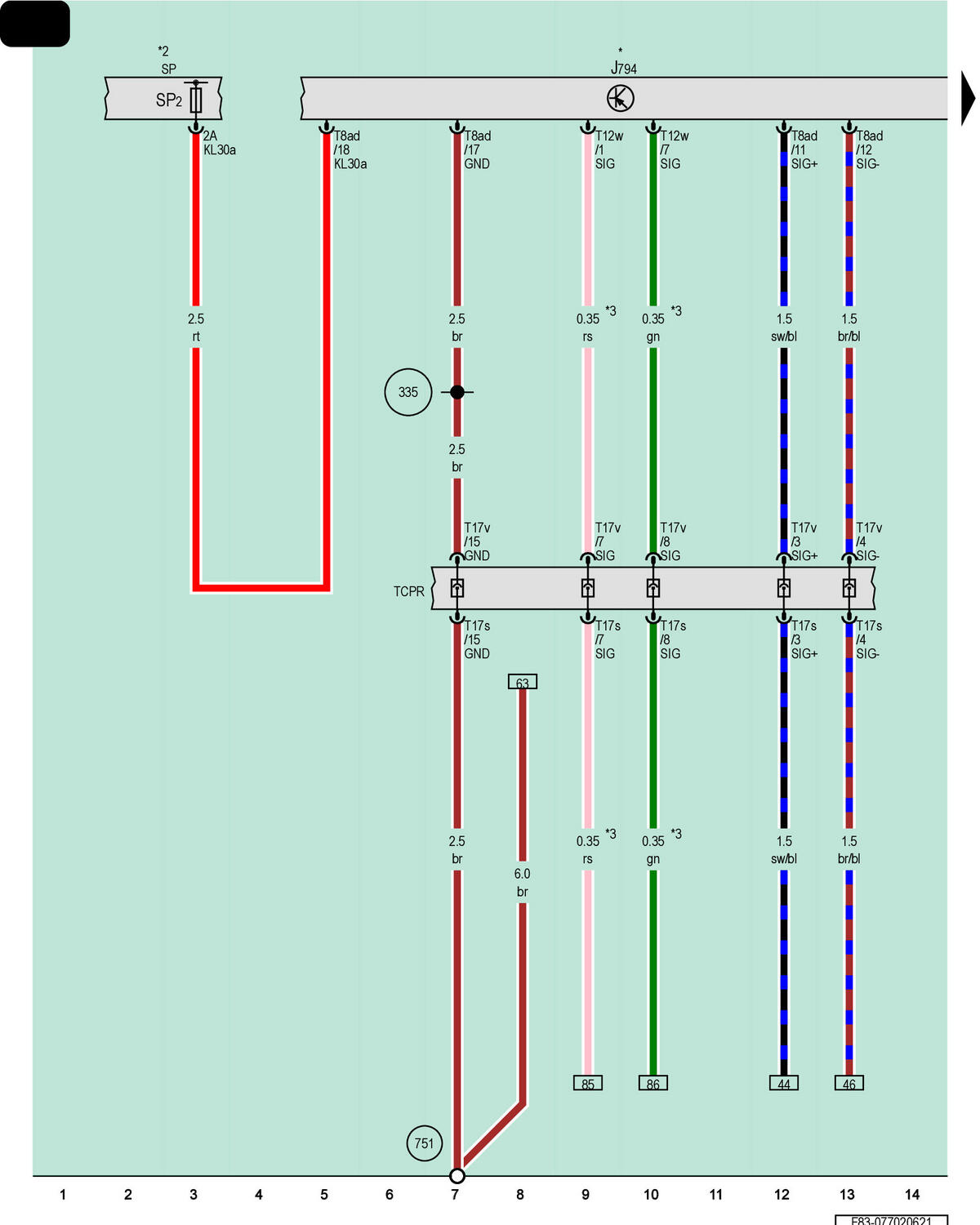

Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

J794

Fuse Panel P

SP2

Fuse 2 on Fuse Panel P

T8ad

8-Pin Connector, Black

T12w

12-Pin Connector, Green

T17s

17-Pin Connector, Black

T17v

17-Pin Connector, Black

TCPR

Coupling Point on Instrument Panel, Right

335

Ground Connection 5 (in Instrument Panel Wiring Harness)

751

Ground Connection 2 on Right A-Pillar

Refer to Applicable MMI (Information Electronics) Wiring Diagram

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

Audio Bus Data Bus Wire
