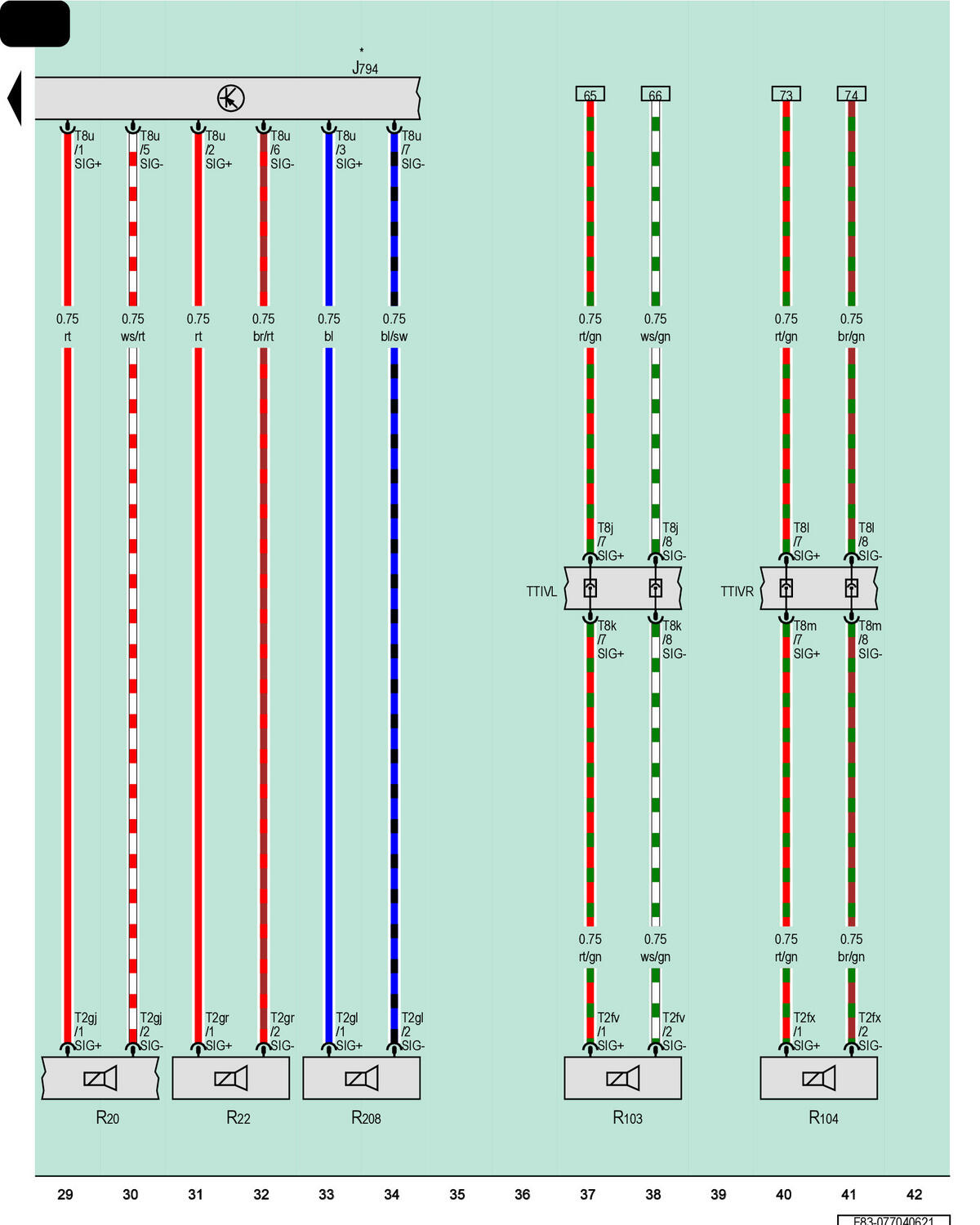

Information Electronics Control Module 1, Left Front Treble Speaker, Right Front Treble Speaker, Left Front Midrange Speaker, Right Front Midrange Speaker, Center Speaker

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R20

Left Front Treble Speaker

R22

Right Front Treble Speaker

R103

Left Front Midrange Speaker

R104

Right Front Midrange Speaker

R208

Center Speaker

T2fv

2-Pin Connector, Black

T2fx

2-Pin Connector, Black

T2gj

2-Pin Connector, Blue

T2gl

2-Pin Connector, Black

T2gr

2-Pin Connector, Blue

T8j

8-Pin Connector, Black

T8k

8-Pin Connector, Black

T8l

8-Pin Connector, Black

T8m

8-Pin Connector, Black

T8u

8-Pin Connector, Brown

TTIVL

Coupling Point in Left Front Door

TTIVR

Coupling Point in Right Front Door

*

Refer to Applicable MMI (Information Electronics) Wiring Diagram
