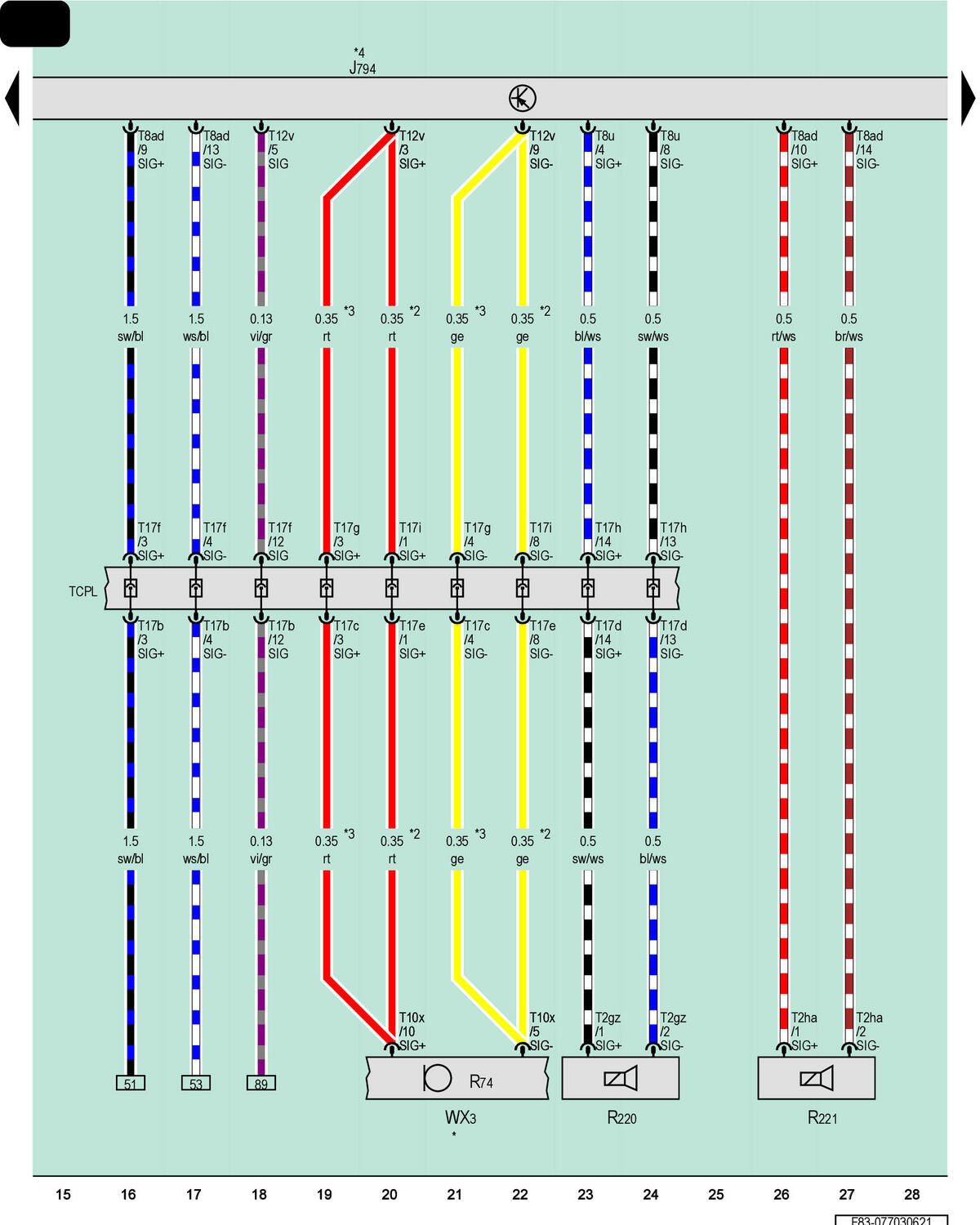

Information Electronics Control Module 1, Left Front Treble Speaker 2, Right Front Treble Speaker 2, Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R74

Interior Microphone

R220

Left Front Treble Speaker 2

R221

Right Front Treble Speaker 2

T2gz

2-Pin Connector, Blue

T2ha

2-Pin Connector, Blue

T8ad

8-Pin Connector, Black

T8u

8-Pin Connector, Brown

T10x

10-Pin Connector, Black

T12v

12-Pin Connector, Blue

T17b

17-Pin Connector, Brown

T17c

17-Pin Connector, Red

T17d

17-Pin Connector, Blue

T17e

17-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17g

17-Pin Connector, Red

T17h

17-Pin Connector, Blue

T17i

17-Pin Connector, Black

TCPL

Coupling Point on Instrument Panel, Left

WX3

Front Roof Module

*

Refer to Applicable Wiring Diagram for Interior Lamps

*2

Omitted as a Running Change

*3

Running Change

*4

Refer to Applicable MMI (Information Electronics) Wiring Diagram
