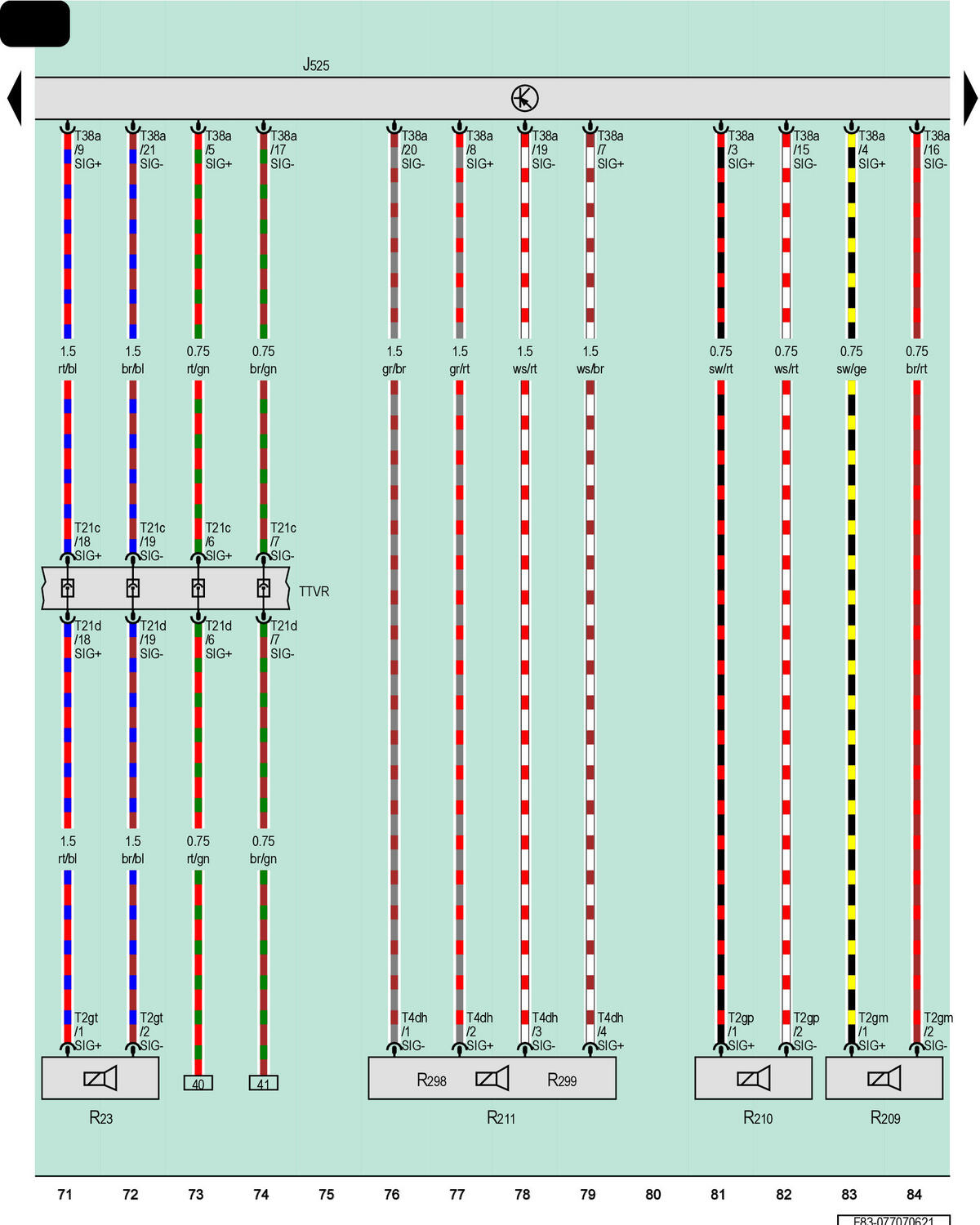

Digital Sound System Control Module, Right Front Bass Speaker, Left Effects Speaker, Right Effects Speaker, Subwoofer, Dual Subwoofer Speaker 1, Dual Subwoofer Speaker 2

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R23

Right Front Bass Speaker

R209

Left Effects Speaker

R210

Right Effects Speaker

R211

Subwoofer

R298

Dual Subwoofer Speaker 1

R299

Dual Subwoofer Speaker 2

T2gm

2-Pin Connector, Black

T2gp

2-Pin Connector, Black

T2gt

2-Pin Connector, Black

T4dh

4-Pin Connector, Black

T21c

21-Pin Connector, Black

T21d

21-Pin Connector, Black

T38a

38-Pin Connector, Black

TTVR

Right Front Door Coupling Point
