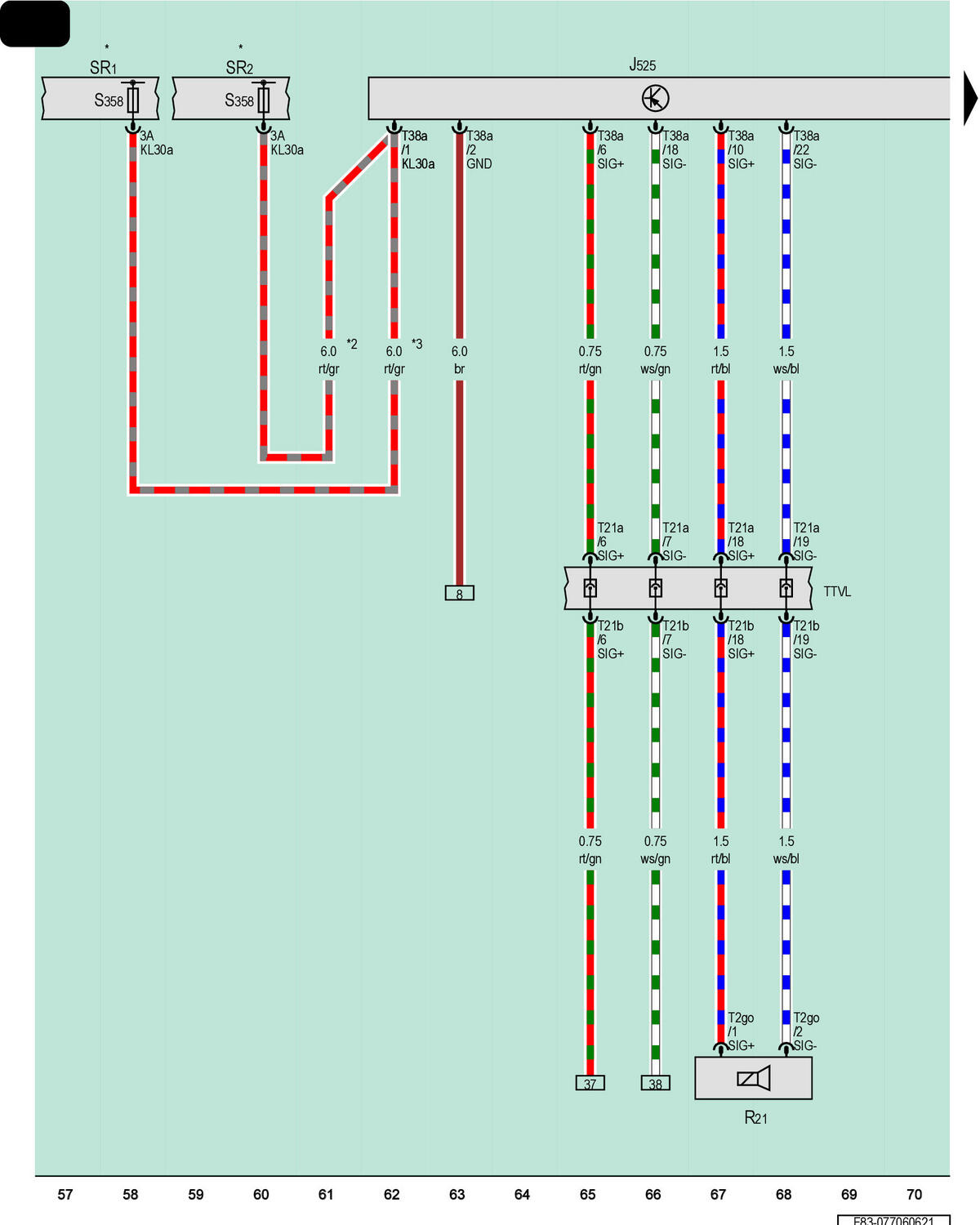

Digital Sound System Control Module, Left Front Bass Speaker

Courtesy of AUDI OF AMERICA, LLC

J525

Digital Sound System Control Module

R21

Left Front Bass Speaker

SR1

Relay and Fuse Panel 1

SR2

Relay and Fuse Panel 2

S358

Digital Sound System Fuse

T2go

2-Pin Connector, Black

T21a

21-Pin Connector, Black

T21b

21-Pin Connector, Black

T38a

38-Pin Connector, Black

TTVL

Left Front Door Coupling Point

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For LHD Vehicles

*3

For RHD Vehicles
