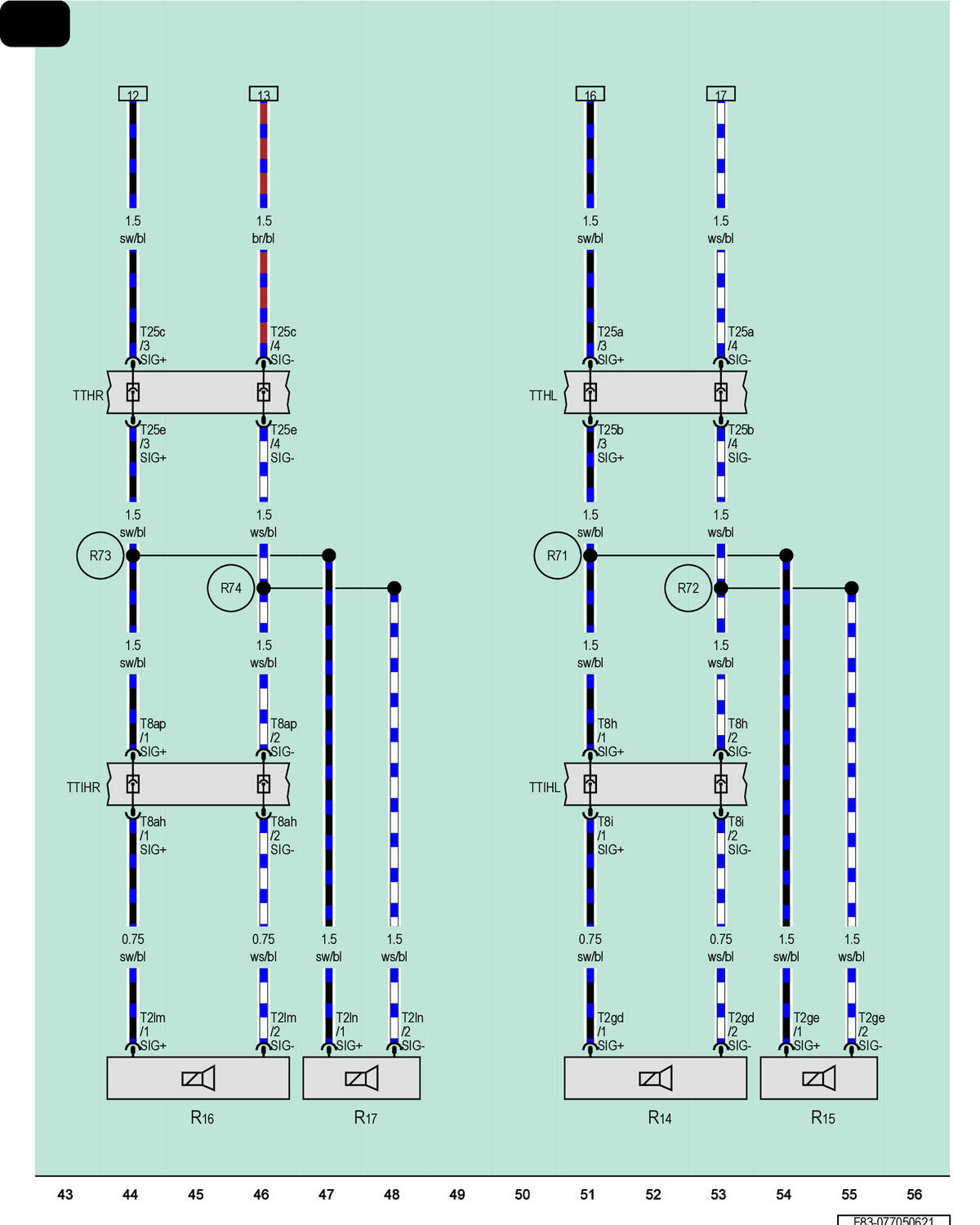

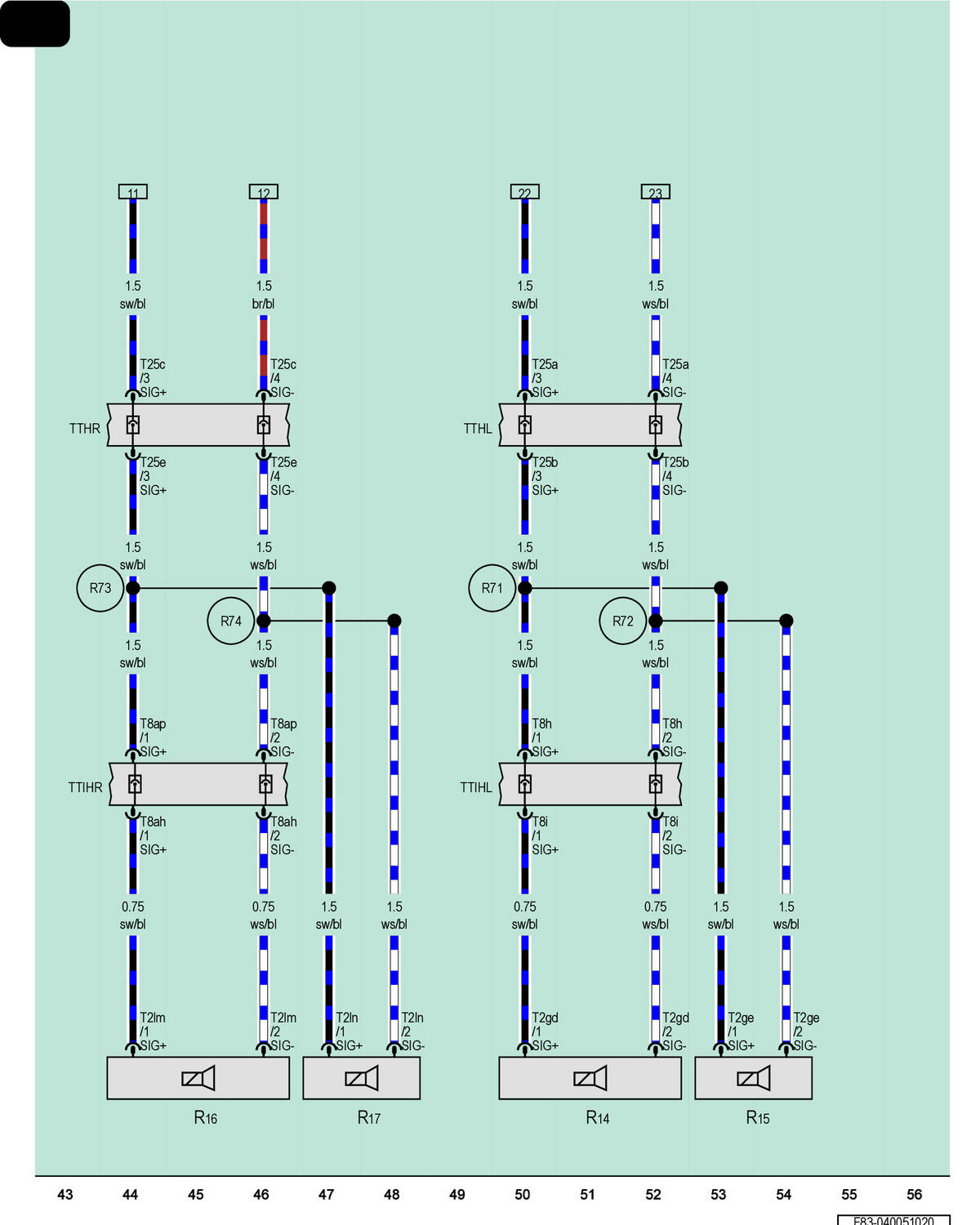

Left Rear Treble Speaker, Left Rear Bass Speaker, Right Rear Treble Speaker, Right Rear Bass Speaker
R14
Left Rear Treble Speaker
R15
Left Rear Bass Speaker
R16
Right Rear Treble Speaker
R17
Right Rear Bass Speaker
T2gd
2-Pin Connector, Naturally Cloudy
T2ge
2-Pin Connector, Brown
T2lm
2-Pin Connector, Naturally Cloudy
T2ln
2-Pin Connector, Brown
T8ah
8-Pin Connector, Black
T8ap
8-Pin Connector, Black
T8h
8-Pin Connector, Black
T8i
8-Pin Connector, Black
T25a
25-Pin Connector, Green
T25b
25-Pin Connector, Green
T25c
25-Pin Connector, Green
T25e
25-Pin Connector, Green
TTHL
Left Rear Door Coupling Point
TTHR
Right Rear Door Coupling Point
TTIHL
Coupling Point in Left Rear Door
TTIHR
Coupling Point in Right Rear Door
R71
Speaker Positive Connection (in Left Rear Door Wiring Harness)
R72
Speaker Negative Connection (in Left Rear Door Wiring Harness)
R73
Speaker Positive Connection (in Right Rear Door Wiring Harness)
R74
Speaker Negative Connection (in Right Rear Door Wiring Harness)
