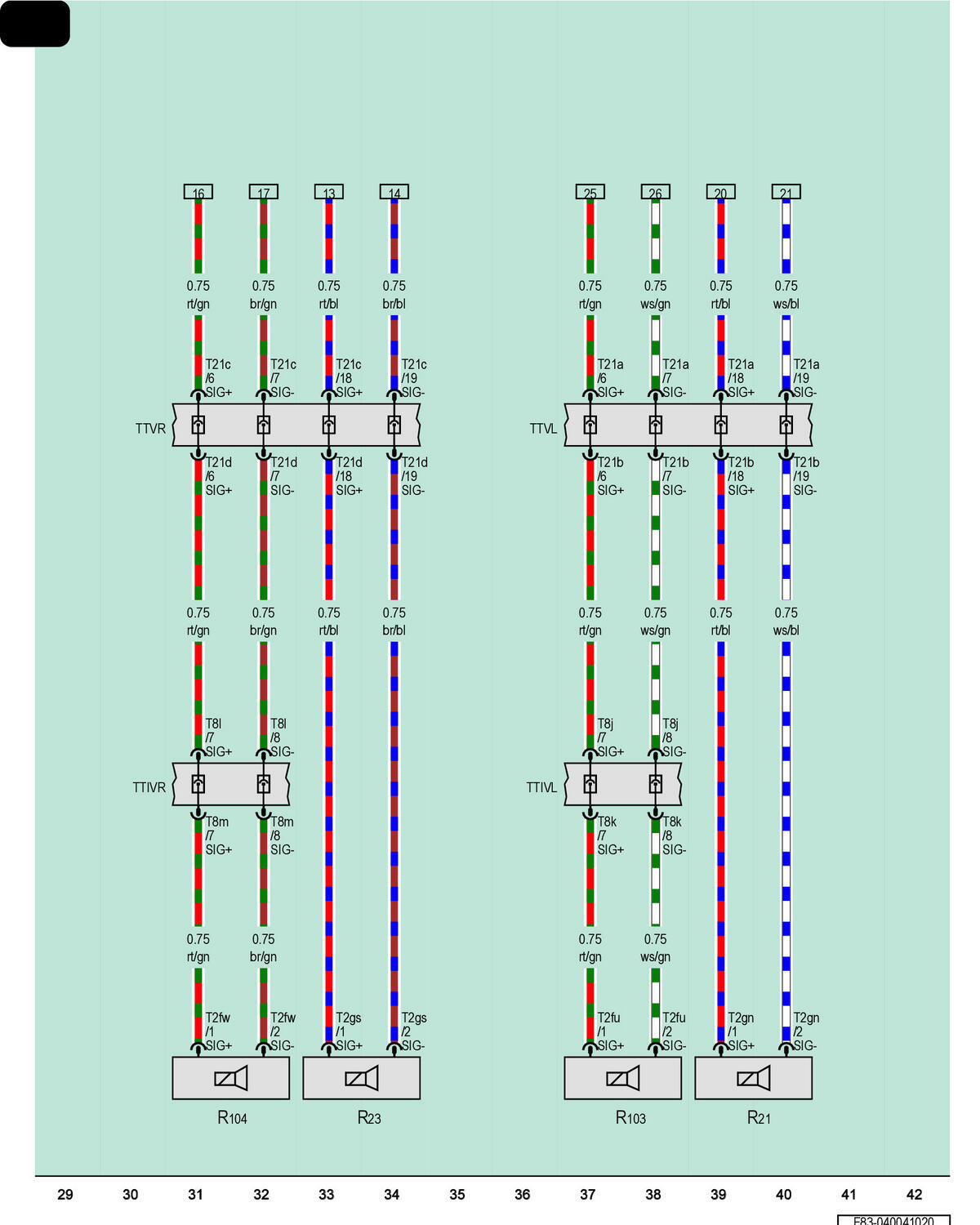

Left Front Bass Speaker, Right Front Bass Speaker, Left Front Midrange Speaker, Right Front Midrange Speaker

Courtesy of AUDI OF AMERICA, LLC

R21

Left Front Bass Speaker

R23

Right Front Bass Speaker

R103

Left Front Midrange Speaker

R104

Right Front Midrange Speaker

T2fu

2-Pin Connector, Naturally Cloudy

T2fw

2-Pin Connector, Naturally Cloudy

T2gn

2-Pin Connector, Brown

T2gs

2-Pin Connector, Brown

T8j

8-Pin Connector, Black

T8k

8-Pin Connector, Black

T8l

8-Pin Connector, Black

T8m

8-Pin Connector, Black

T21a

21-Pin Connector, Black

T21b

21-Pin Connector, Black

T21c

21-Pin Connector, Black

T21d

21-Pin Connector, Black

TTIVL

Coupling Point in Left Front Door

TTIVR

Coupling Point in Right Front Door

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point
