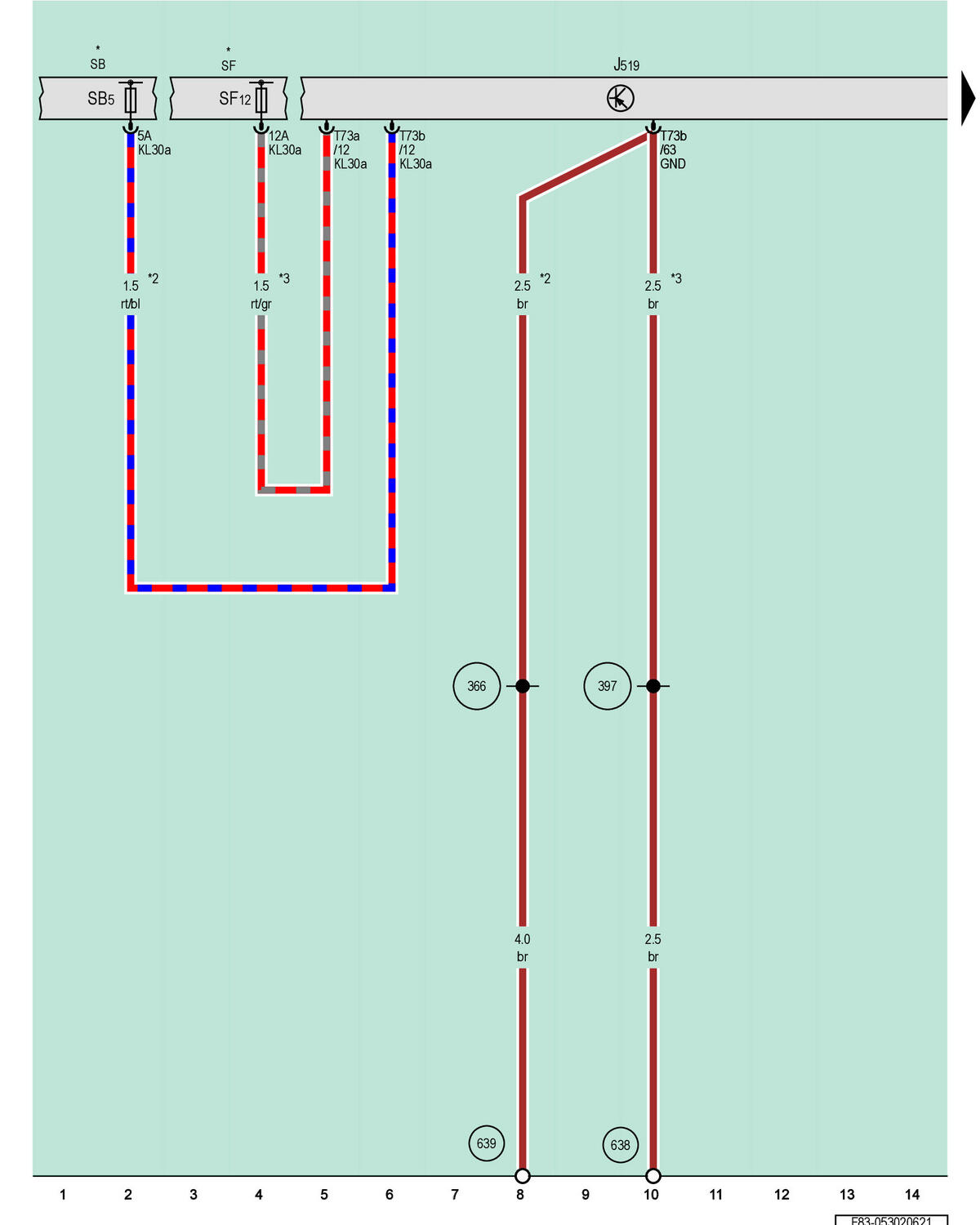

Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

SB

Fuse Panel B

SB5

Fuse 5 (On Fuse Panel B)

SF

Fuse Panel F

SF12

Fuse 12 (On Fuse Panel F)

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

366

Ground Connection 1 (in Main Wiring Harness)

397

Ground Connection 32 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

639

Ground Connection on Left A-Pillar

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For LHD Vehicles

*3

For RHD Vehicles
