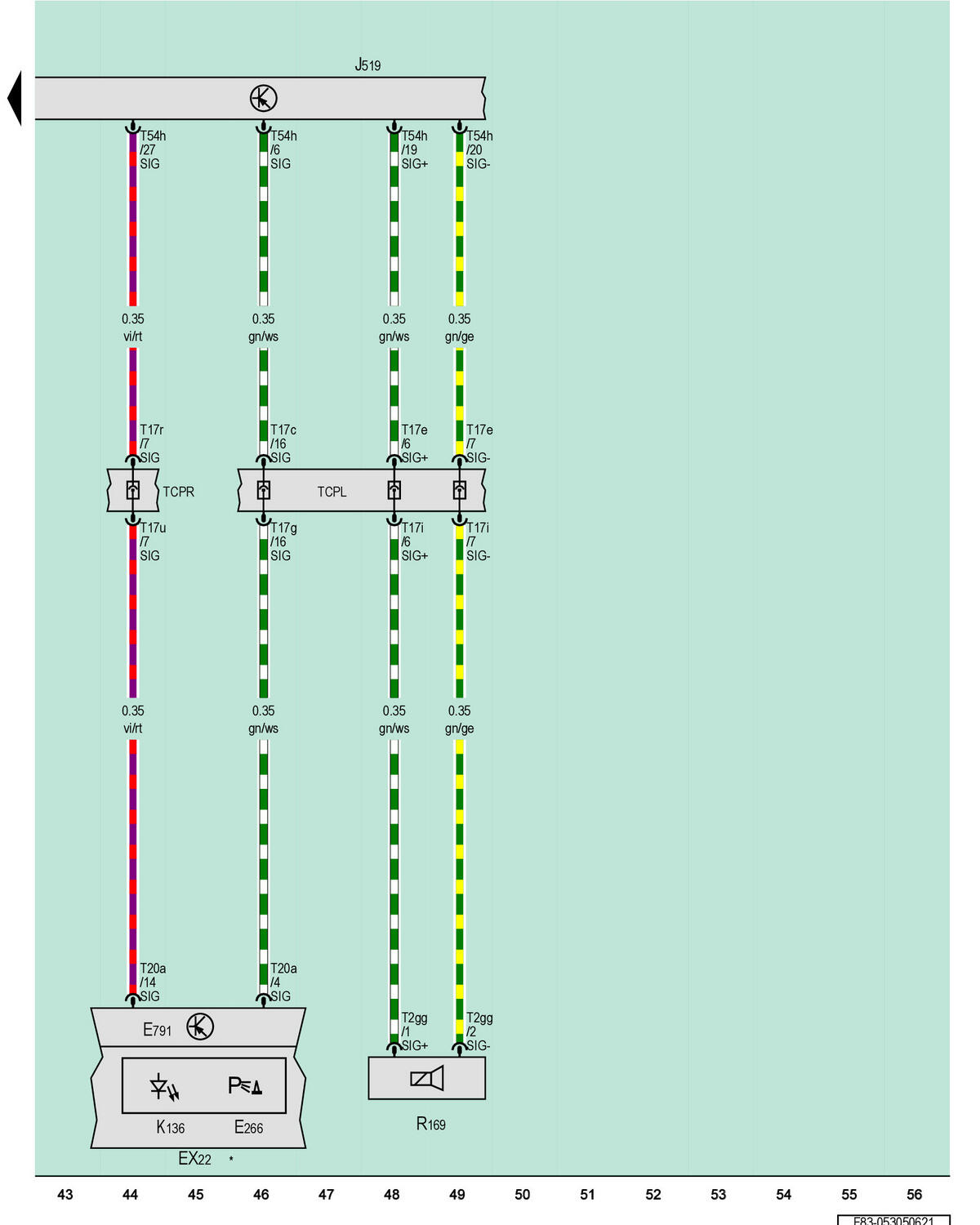

Center Instrument Panel Switch Module, Control Unit 1 For Driving And Convenience Functions, Vehicle Electrical System Control Module, Parking Aid Speaker, Coupling Point On Instrument Panel, Left
EX22
Center Instrument Panel Switch Module
E266
Parking Aid Button
E791
Control Unit 1 for Driving and Convenience Functions
J519
Vehicle Electrical System Control Module
K136
Parking Aid Indicator Lamp
R169
Parking Aid Speaker
T2gg
2-Pin Connector, Black
T17c
17-Pin Connector, Red
T17e
17-Pin Connector, Black
T17g
17-Pin Connector, Red
T17i
17-Pin Connector, Black
T17r
17-Pin Connector, Brown
T17u
17-Pin Connector, Brown
T20a
20-Pin Connector, Black
T54h
54-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
TCPR
Coupling Point on Instrument Panel, Right
*
Refer to the Applicable Wiring Diagram for the Switch and Center Console
