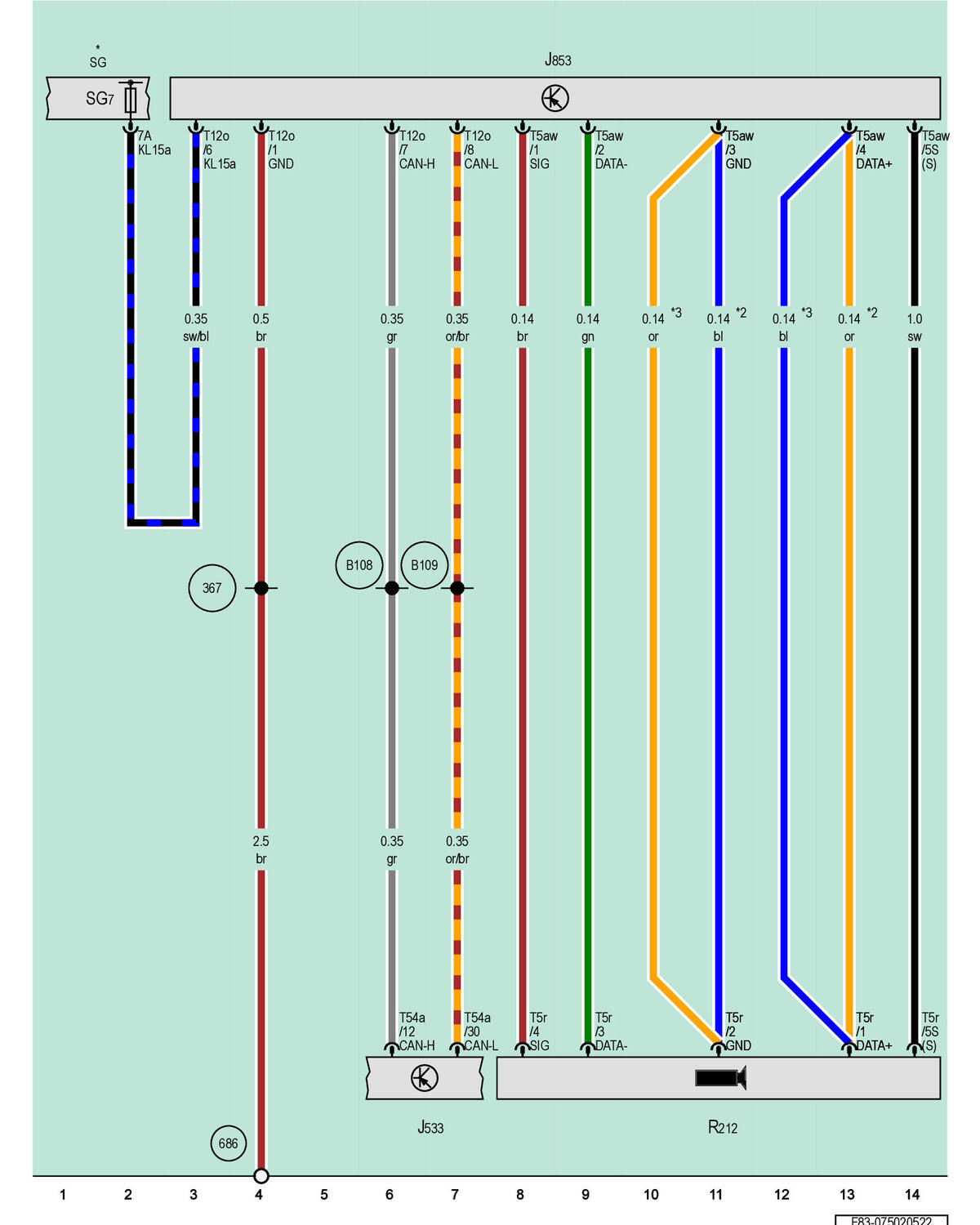

Night Vision System Control Module, Night Vision System Camera

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J853

Night Vision System Control Module

R212

Night Vision System Camera

Fuse Panel G

SG7

Fuse 7 on Fuse Panel G

T5aw

5-Pin Connector, Black

T5r

5-Pin Connector, Black

T12o

12-Pin Connector, Black

T54a

54-Pin Connector, Black

367

Ground Connection 2 (in Main Wiring Harness)

686

Ground Connection 2 on Right Front Longitudinal Member

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

Omitted as a Running Change

Running Change
