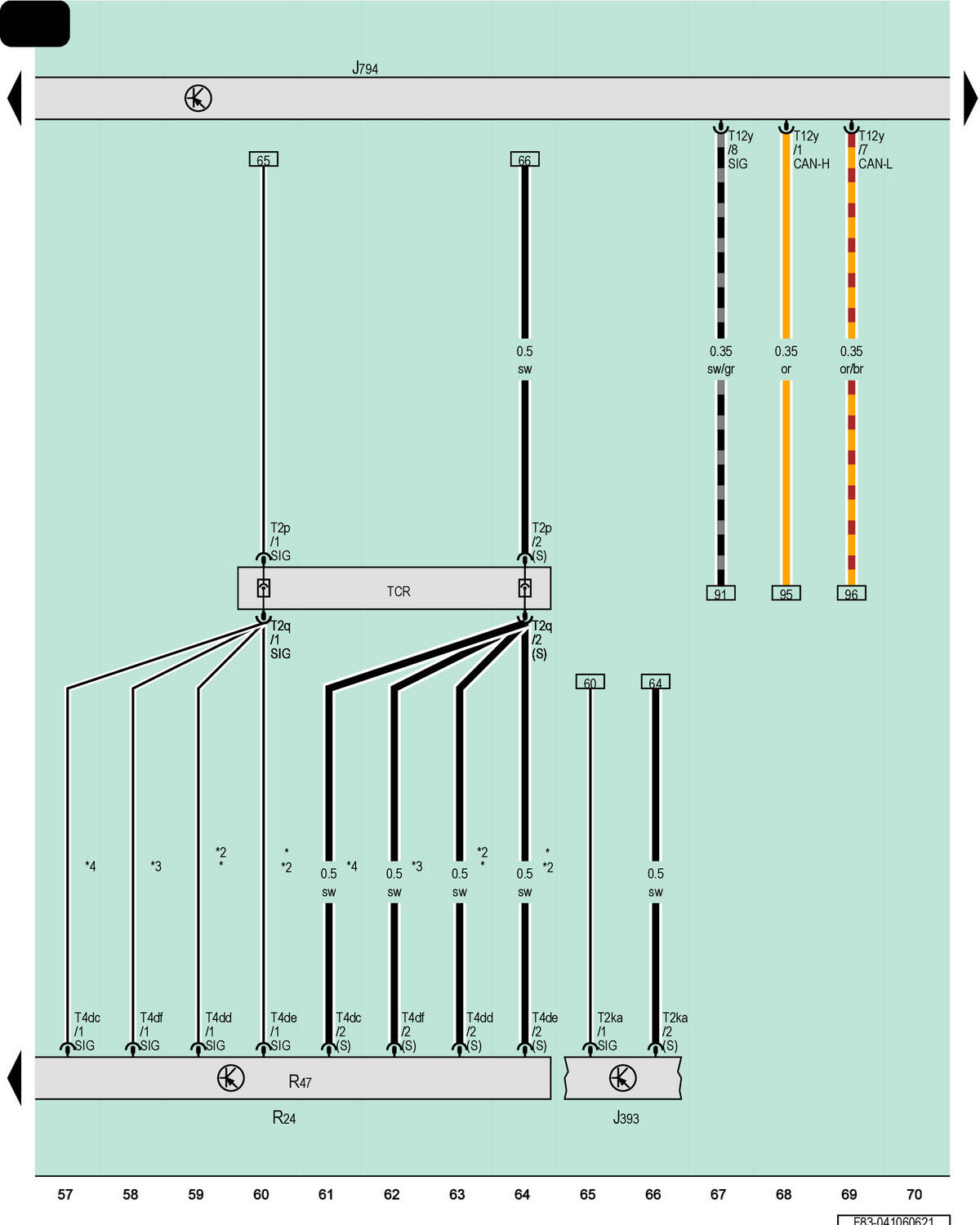

Comfort System Central Control Module, Information Electronics Control Module 1, Antenna Amplifier

Courtesy of AUDI OF AMERICA, LLC

J393

Comfort System Central Control Module

J794

Information Electronics Control Module 1

R24

Antenna Amplifier

R47

Central Locking and Anti-Theft Alarm System Antenna

T2ka

2-Pin Connector, Gray

T2p

2-Pin Connector, Green

T2q

2-Pin Connector, Green

T4dc

4-Pin Connector, Pink

T4dd

4-Pin Connector, Brown

T4de

4-Pin Connector, Yellow

T4df

4-Pin Connector, Green

T12y

12-Pin Connector, Gray

TCR

Coupling Point on Right C-Pillar

For Vehicles Without US Equipment

For Vehicles Without Digital Radio

Country-Specific

For Vehicles with Japan Equipment
