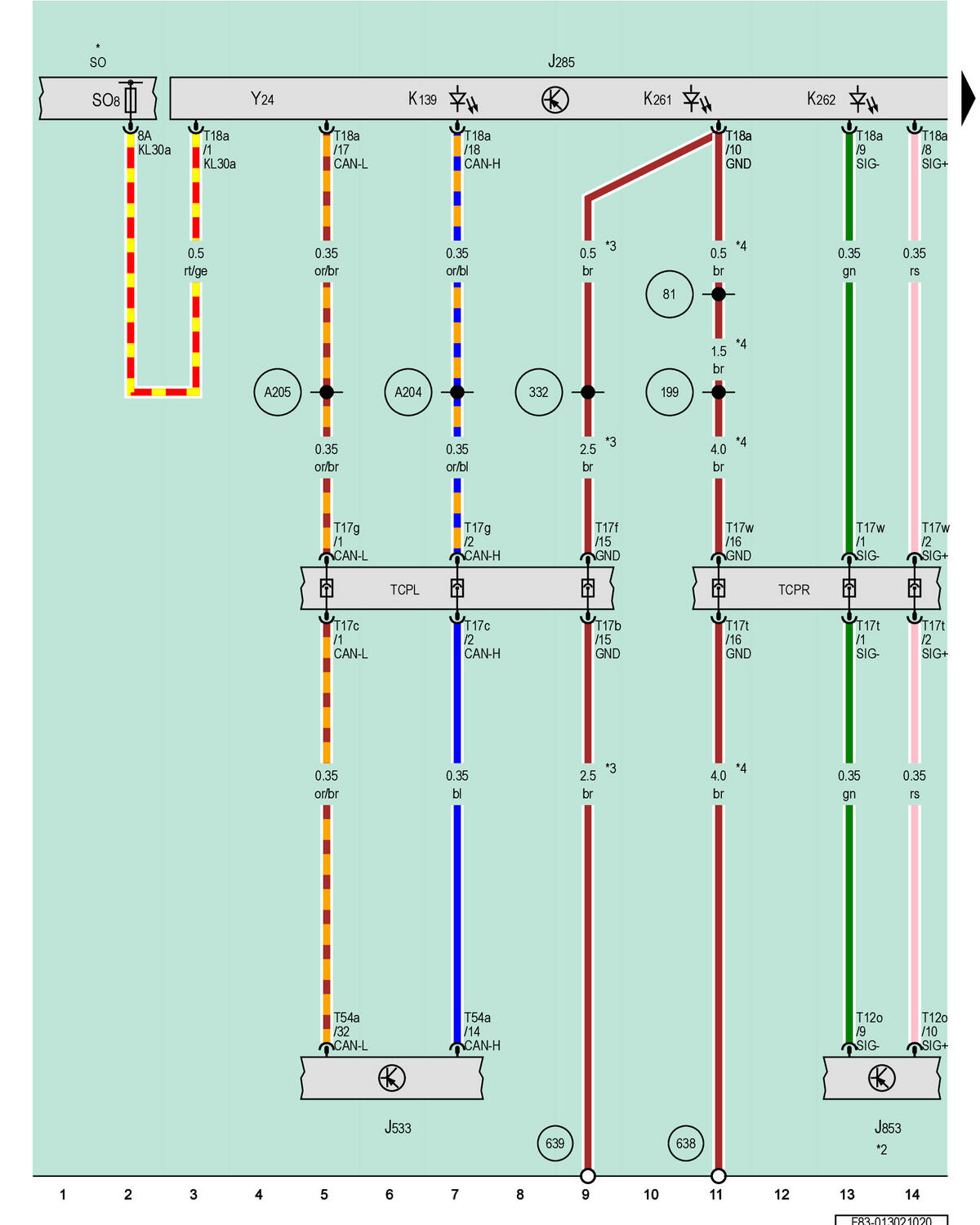

Instrument Cluster Control Module, Night Vision System Control Module
J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
J853
Night Vision System Control Module
K139
Parking Brake Indicator Lamp
K261
Left Turn Signal Indicator Lamp
K262
Right Emergency Flasher Indicator Lamp
SO
Fuse Panel O
SO8
Fuse 8 on Fuse Panel O
T12o
12-Pin Connector, Black
T17b
17-Pin Connector, Brown
T17c
17-Pin Connector, Red
T17f
17-Pin Connector, Brown
T17g
17-Pin Connector, Red
T17t
17-Pin Connector, Blue
T17w
17-Pin Connector, Blue
T18a
18-Pin Connector, Black
T54a
54-Pin Connector, Black
TCPL
Coupling Point on Instrument Panel, Left
TCPR
Coupling Point on Instrument Panel, Right
Y24
Display Unit in Instrument Cluster
81
Ground Connection 1 (in Instrument Panel Wiring Harness)
199
Ground Connection 3 (in Instrument Panel Wiring Harness)
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
638
Ground Connection on Right A-Pillar
639
Ground Connection on Left A-Pillar
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*2
Refer to Applicable Night Vision System Wiring Diagram
*3
For LHD Vehicles
*4
For RHD Vehicles
