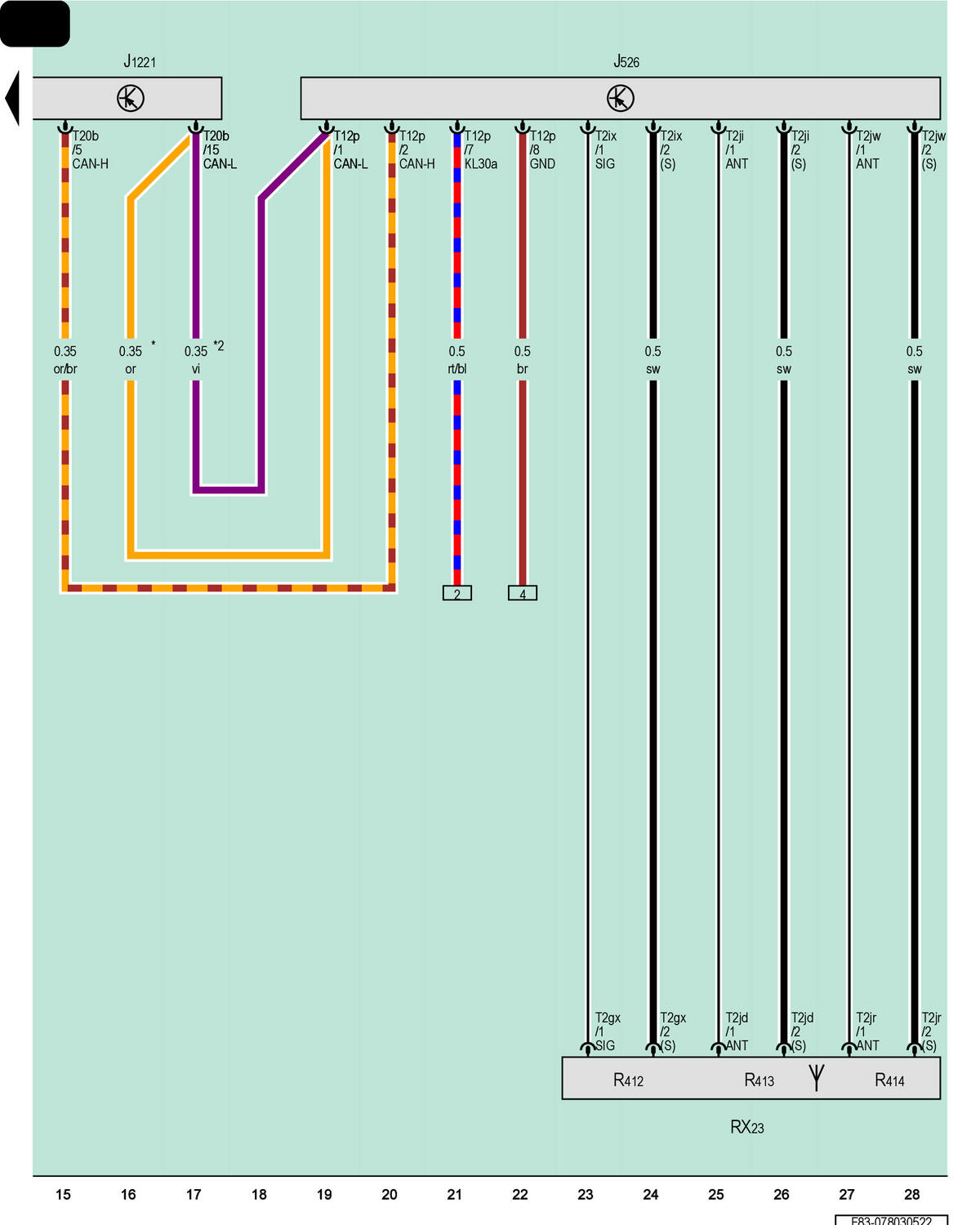

Telephone/Telematics Control Module, Telematics Interface Control Module, Telephone Antenna Module, Telematics, Antenna 1 On The Telephone/Telematics Control Module, Antenna 2 On The Telephone/Telematics Control Module, Antenna 3 On The Telephone/Telematics Control Module

Courtesy of AUDI OF AMERICA, LLC

J526

Telephone/Telematics Control Module

J1221

Telematics Interface Control Module

RX23

Telephone Antenna Module, Telematics

R412

Antenna 1 on the Telephone/Telematics Control Module

R413

Antenna 2 on the Telephone/Telematics Control Module

R414

Antenna 3 on the Telephone/Telematics Control Module

T2gx

2-Pin Connector, Blue

T2ix

2-Pin Connector, Blue

T2jd

2-Pin Connector, Purple

T2ji

2-Pin Connector, Purple

T2jr

2-Pin Connector, Yellow

T2jw

2-Pin Connector, Yellow

T12p

12-Pin Connector, Black

T20b

20-Pin Connector, Brown

*

Omitted as a Running Change

*2

Running Change
