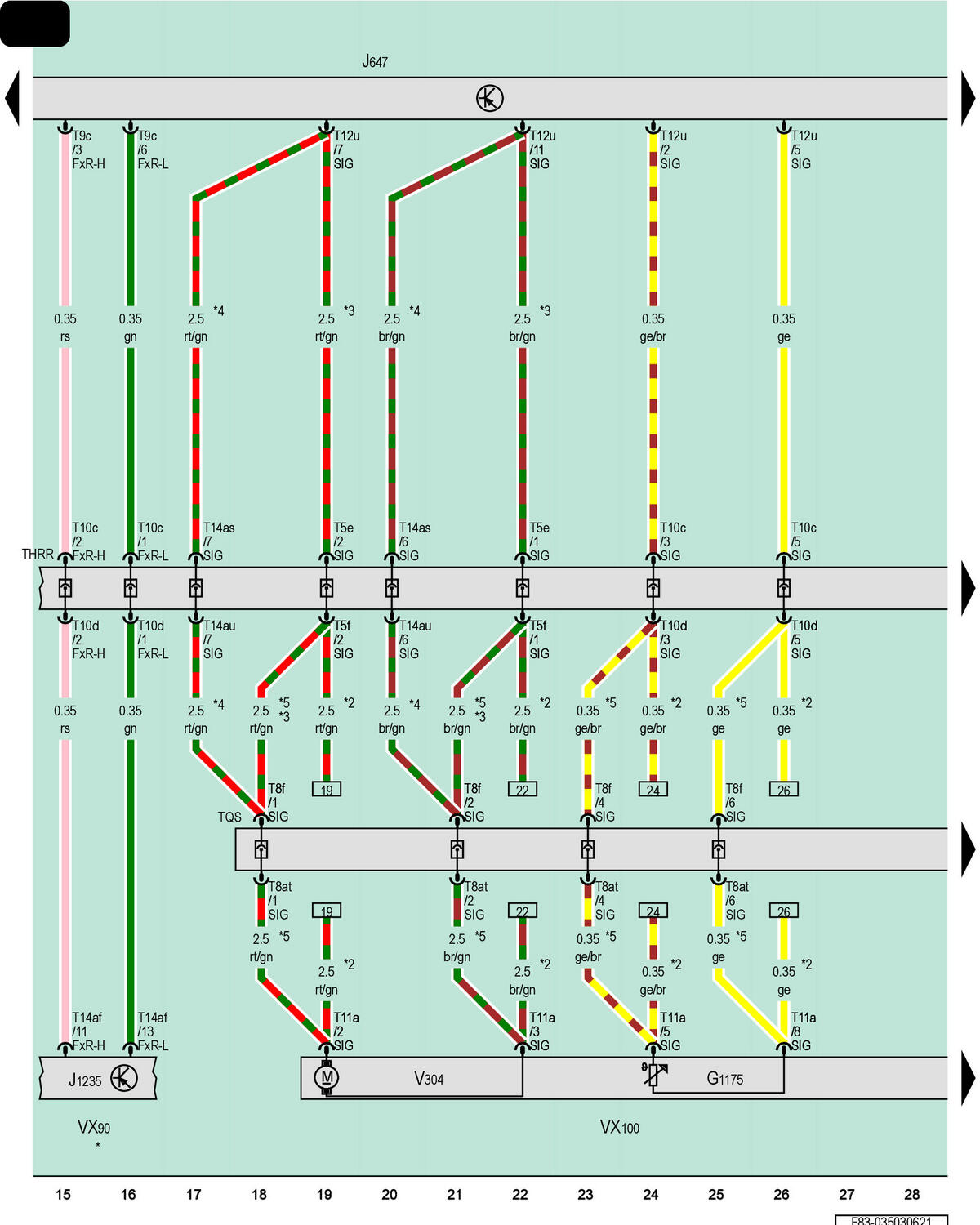

Differential Locks Control Module, Rear Three-Phase Current Drive, Differential Lock

Courtesy of AUDI OF AMERICA, LLC

G1175

Differential Lock Motor Temperature Sensor

J647

Differential Locks Control Module

J1235

Electric Drive Control Module on Rear Axle

T5e

5-Pin Connector, Black

T5f

5-Pin Connector, Black

T8at

8-Pin Connector, Black

T8f

8-Pin Connector, Black

T9c

9-Pin Connector, Gray

T10c

10-Pin Connector, Black

T10d

10-Pin Connector, Black

T11a

11-Pin Connector, Black

T12u

12-Pin Connector, Green

T14af

14-Pin Connector, Black

T14as

14-Pin Connector, Black

T14au

14-Pin Connector, Black

THRR

Coupling Point in Luggage Compartment, Right

TQS

Differential Lock Coupling Point

VX90

Rear Three-Phase Current Drive

VX100

Differential Lock

V304

Differential Lock Motor

*

Refer to Applicable Rear Axle Electric Drive System Wiring Diagram

*2

Through December 2020

*3

Through June 2021

*4

From June 2021

*5

From December 2020
