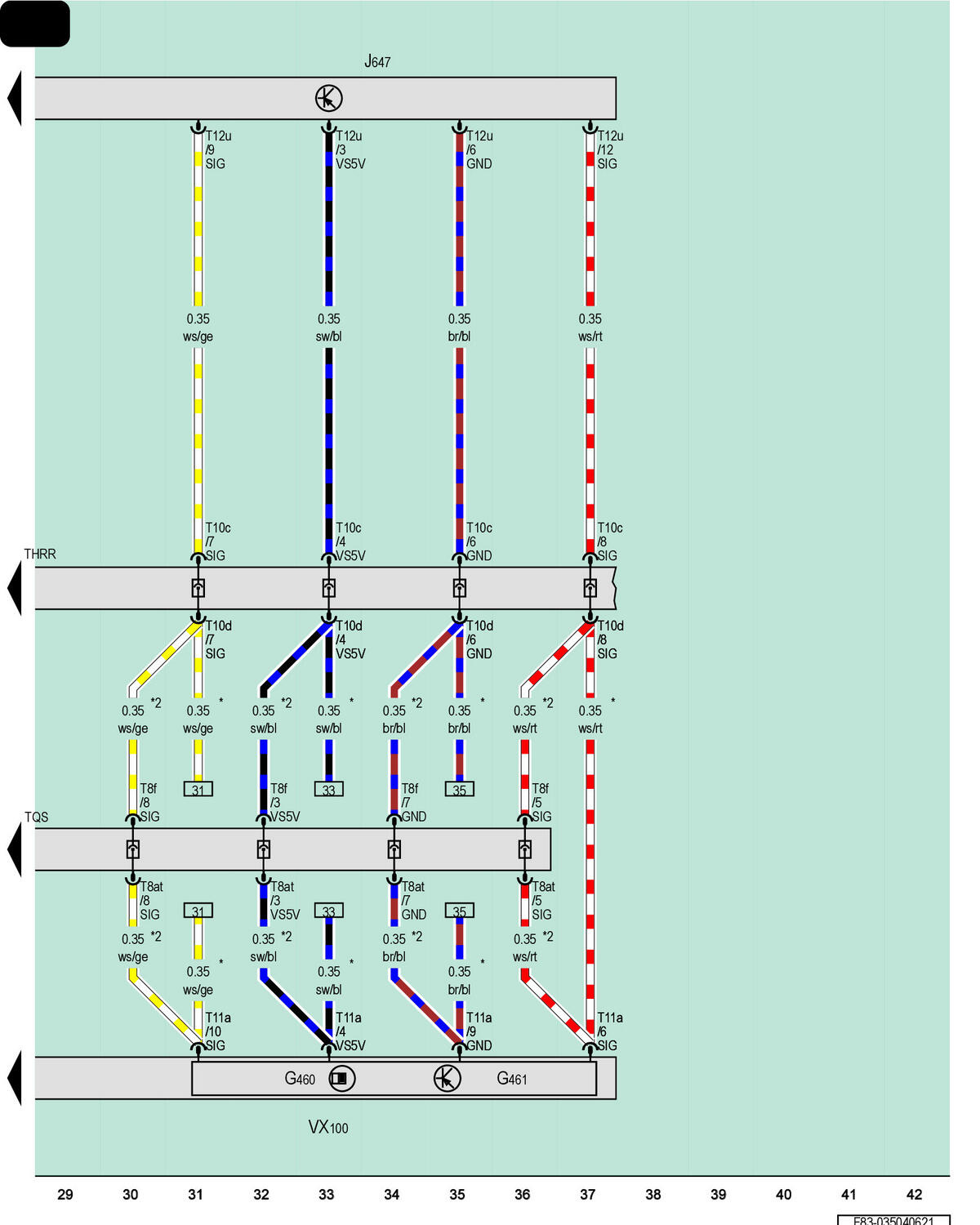

Differential Locks Control Module, Differential Lock

Courtesy of AUDI OF AMERICA, LLC

G460

Differential Lock Position Sensor 1

G461

Differential Lock Position Sensor 2

J647

Differential Locks Control Module

T8at

8-Pin Connector, Black

T8f

8-Pin Connector, Black

T10c

10-Pin Connector, Black

T10d

10-Pin Connector, Black

T11a

11-Pin Connector, Black

T12u

12-Pin Connector, Green

THRR

Coupling Point in Luggage Compartment, Right

TQS

Differential Lock Coupling Point

VX100

Differential Lock

*

Through December 2020

*2

From December 2020
