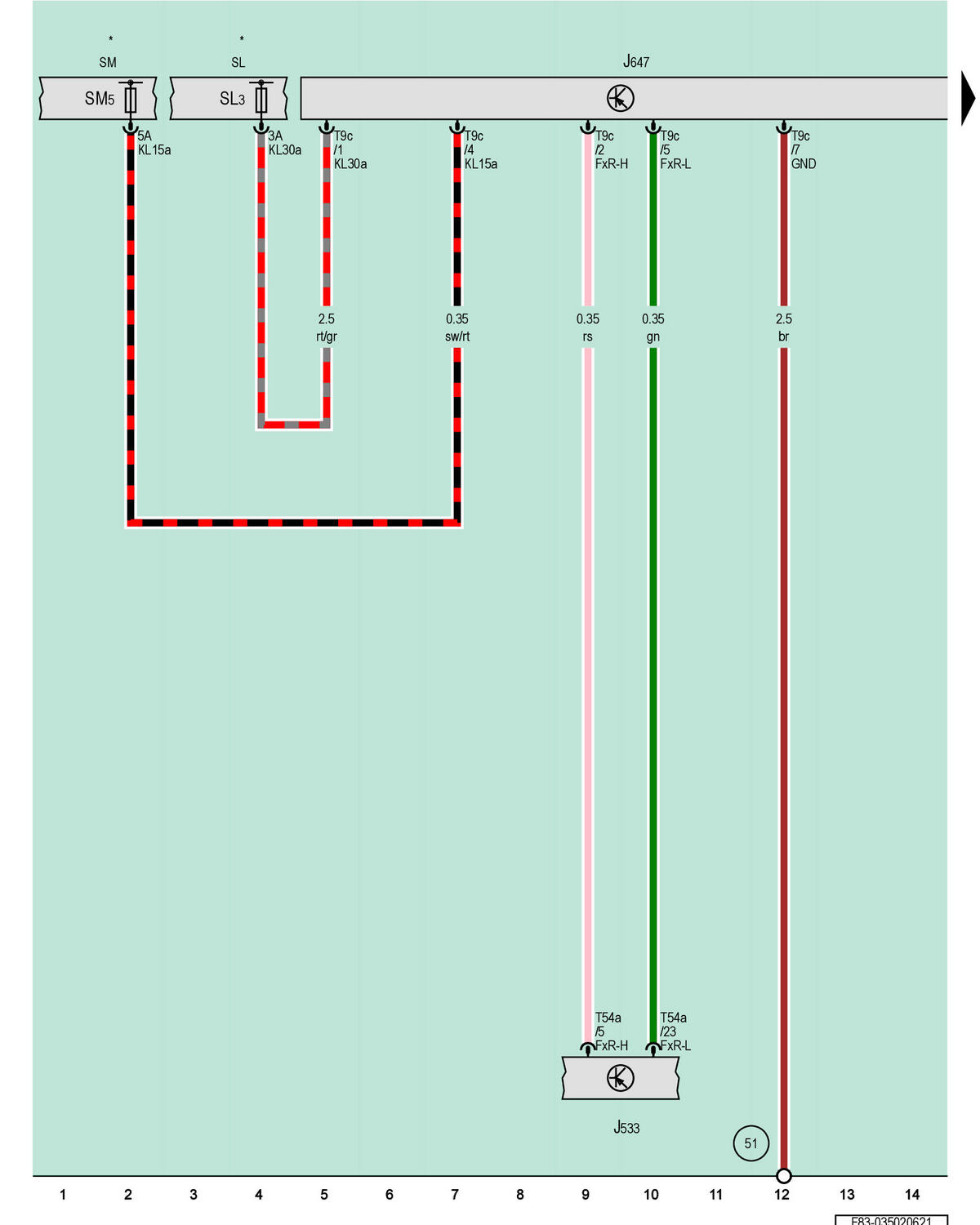

Data Bus On Board Diagnostic Interface, Differential Locks Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J647

Differential Locks Control Module

SL

Fuse Panel L

SL3

Fuse 3 on Fuse Panel L

SM

Fuse Panel M

SM5

Fuse 5 on Fuse Panel M

T9c

9-Pin Connector, Gray

T54a

54-Pin Connector, Black

51

Ground Connection in Luggage Compartment, Right

*

Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment
