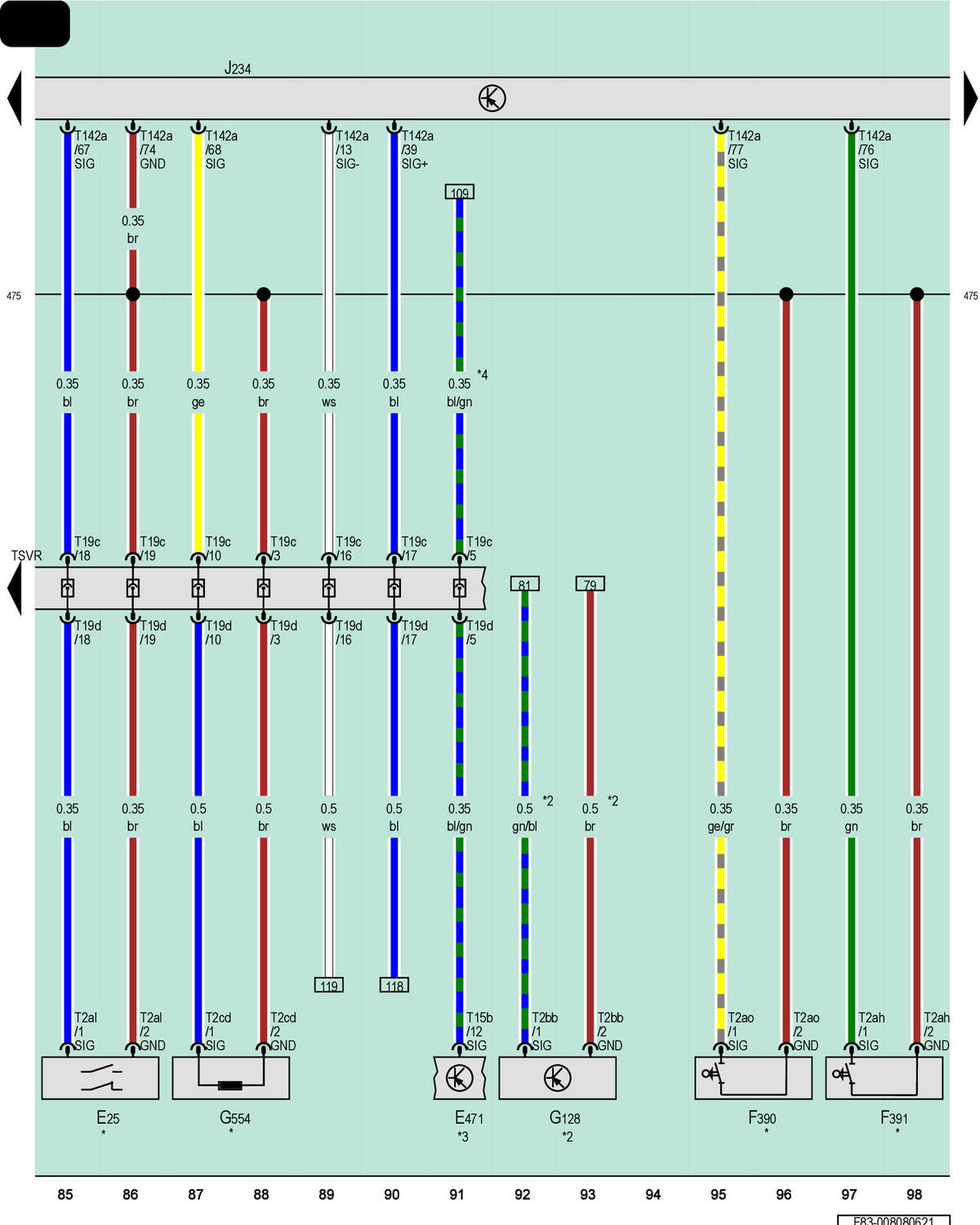

Front Passenger Seat Belt Switch, Front Passenger Seat Adjustment Control Head, Driver Side Second Row Seat Belt Switch, Center Second Row Seat Belt Switch, Passenger Seat Occupant Detection Sensor, Front Passenger Seat Position Sensor, Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

E25

Front Passenger Seat Belt Switch

E471

Front Passenger Seat Adjustment Control Head

F390

Driver Side Second Row Seat Belt Switch

F391

Center Second Row Seat Belt Switch

G128

Passenger Seat Occupant Detection Sensor

G554

Front Passenger Seat Position Sensor

J234

Airbag Control Module

T2ah

2-Pin Connector, Blue

T2al

2-Pin Connector, Black

T2ao

2-Pin Connector, Black

T2bb

2-Pin Connector, Black

T2cd

2-Pin Connector

T15b

15-Pin Connector, Purple

T19c

19-Pin Connector, Black

T19d

19-Pin Connector, Black

T142a

142-Pin Connector, Yellow

TSVR

Right Front Seat Coupling Station

475

Airbag Ground Connection (in Main Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles Without US Equipment

*3

Refer to Applicable Seat Adjustment Wiring Diagram

*4

Depending on Equipment
