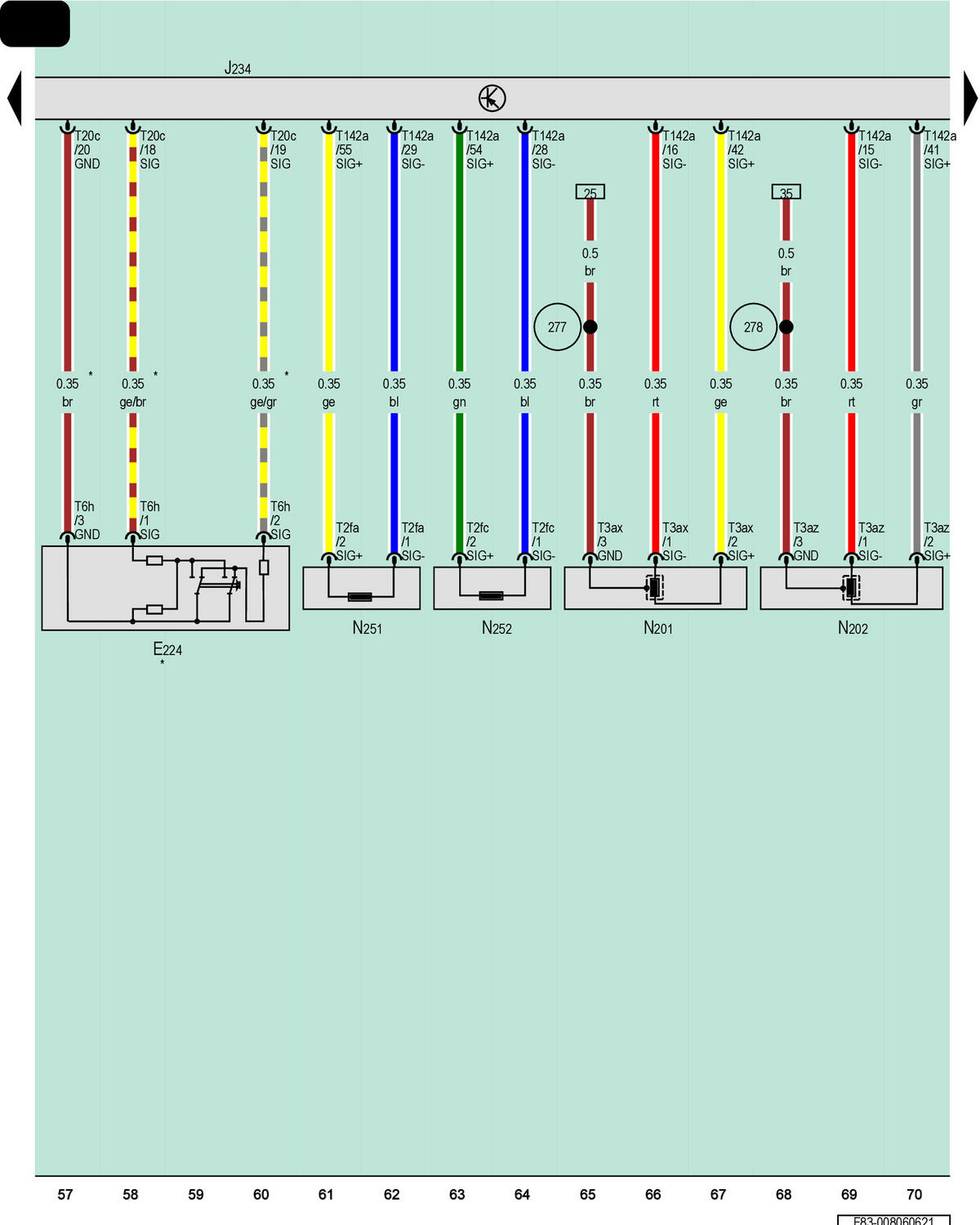

Front Passenger Airbag Deactivation Key Switch, Airbag Control Module, Driver Side Rear Thorax Airbag Igniter, Passenger Side Rear Thorax Airbag Igniter, Driver Head Curtain Airbag Igniter, Front Passenger Head Curtain Airbag Igniter
E224
Front Passenger Airbag Deactivation Key Switch
J234
Airbag Control Module
N201
Driver Side Rear Thorax Airbag Igniter
N202
Passenger Side Rear Thorax Airbag Igniter
N251
Driver Head Curtain Airbag Igniter
N252
Front Passenger Head Curtain Airbag Igniter
T2fa
2-Pin Connector, Yellow
T2fc
2-Pin Connector, Yellow
T3ax
3-Pin Connector
T3az
3-Pin Connector
T6h
6-Pin Connector, Yellow
T20c
20-Pin Connector, Yellow
T142a
142-Pin Connector, Yellow
277
Ground Connection 3 (in Interior Wiring Harness)
278
Ground Connection 4 (in Interior Wiring Harness)
*
For Vehicles with Key Switch for Deactivating Front Passenger Airbag/Thorax Airbag/Seat Belt Latch Monitoring
